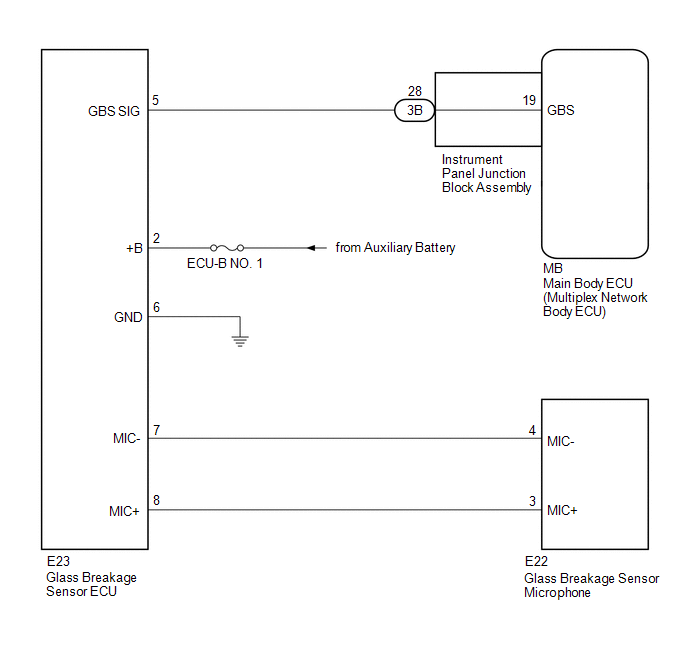

Glass Breakage Sensor Circuit [10/2014 - ]: Wiring Diagram

GTY543067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
