DTC B2799: Engine Immobiliser System Malfunction [10/2014 - 10/2015]: Procedure
- CLEAR DTC
- Clear the DTCs (Refer to DTC CHECK / CLEAR [10/2014 - 10/2015] ).
Result:
NEXT
See step 2
- CHECK FOR DTC
- Start the hybrid control system.
- Wait 10 seconds or more.
- Check for DTCs (Refer to DTC CHECK / CLEAR [10/2014 - 10/2015]
).
HINT:
Before checking for DTCs, perform the "DTC Output Confirmation Operation" procedure.
Result
Result Proceed to OK A NG (DTC B2799 is output) B NG (Other DTCs are output) C
Result:
A
USE SIMULATION METHOD TO CHECK
(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2014 - 10/2015] )
Result:
C
GO TO DIAGNOSTIC TROUBLE CODE CHART
(Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2014 - 10/2015] )
Result:
B
See step 3
- INSPECT POWER MANAGEMENT CONTROL ECU (TERMINAL IMO)

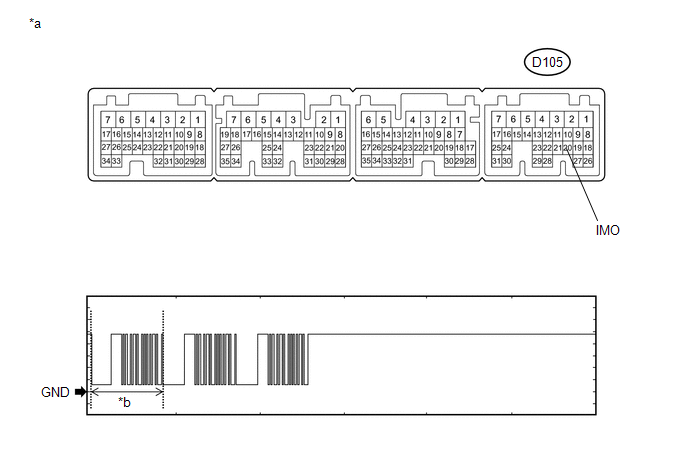

- Using an oscilloscope, check the waveform.TEXT IN ILLUSTRATION
*a Component with harness connected
(Power Management Control ECU)*b Waveform MEASUREMENT CONDITIONItem Content Tester Connection D105-20 (IMO) - Body ground Tool Setting 2 V/DIV., 500 ms./DIV. Condition Within 3 seconds of hybrid control system start, or within 3 seconds of power switch turned on (IG) after auxiliary battery cable disconnected and reconnected OK
The waveform is similar to that shown in the illustration.
RESULTResult Proceed to Normal waveform A Terminal IMO stuck low (2.4 V or less) B Terminal IMO stuck high (12 V) or Abnormal waveform C
Result:
B
See step 7
Result:
C
See step 12
Result:
A
See step 4
- Using an oscilloscope, check the waveform.
- INSPECT POWER MANAGEMENT CONTROL ECU (TERMINAL IMI)

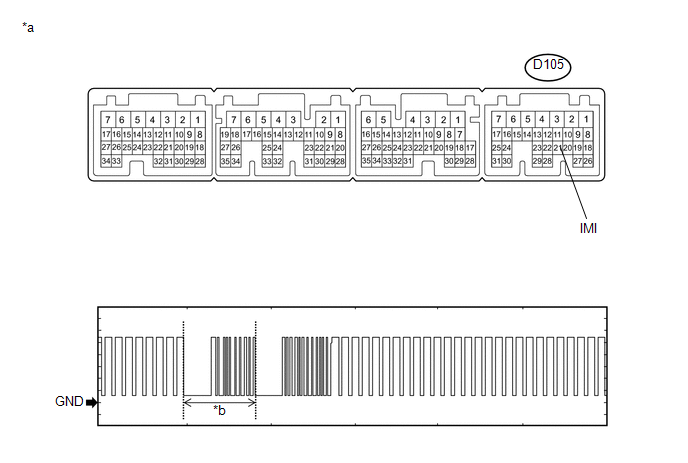

- Using an oscilloscope, check the waveform.TEXT IN ILLUSTRATION
*a Component with harness connected
(Power Management Control ECU)*b Waveform MEASUREMENT CONDITIONItem Content Tester Connection D105-21 (IMI) - Body ground Tool Setting 2 V/DIV., 500 ms./DIV. Condition Within 3 seconds of hybrid control system start, or within 3 seconds of power switch turned on (IG) after auxiliary battery cable disconnected and reconnected OK
The waveform is similar to that shown in the illustration.
RESULTResult Proceed to Normal waveform A Not output waveform or abnormal waveform B
Result:
B
See step 9
Result:
A
See step 5
- Using an oscilloscope, check the waveform.
- REGISTER ECU COMMUNICATION ID
- Reregister the ECU communication ID (Refer to REGISTRATION [10/2014 - 10/2015] ).
Result:
NEXT
See step 6
- CHECK WHETHER HYBRID CONTROL SYSTEM STARTS
- Check that the hybrid control system starts with an already registered vehicle key.
OK
Hybrid control system starts normally.
Result:
OK
END (COMMUNICATION ID REGISTRATION WAS DEFECTIVE)
Result:
NG
See step 12
- Check that the hybrid control system starts with an already registered vehicle key.
- INSPECT POWER MANAGEMENT CONTROL ECU (IMO TERMINAL VOLTAGE)
- Disconnect the D105 power management control ECU connector.
- Turn the power switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Result

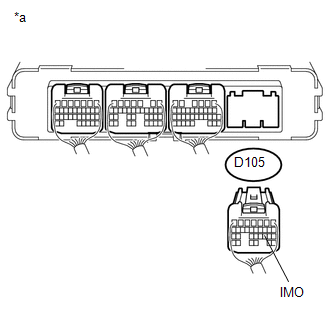

Result Proceed to Terminal IMO stuck low (2.4 V or less) A Terminal IMO stuck high (12 V) B TEXT IN ILLUSTRATION*a Rear view of wire harness connector
(to Power Management Control ECU)
Result:
B
See step 12
Result:
A
See step 8
- Disconnect the D105 power management control ECU connector.
- CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - CERTIFICATION ECU AND BODY GROUND)
- Disconnect the D110 certification ECU (smart key ECU assembly) connector.
- Disconnect the D105 power management control ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition D110-14 (EFIO) - D105-21 (IMI) Always Below 1 Ω D110-10 (EFII) - D105-20 (IMO) Always Below 1 Ω D110-14 (EFIO) or D105-21 (IMI) - Body ground Always 10 kΩ or higher D110-10 (EFII) or D105-20 (IMO) - Body ground Always 10 kΩ or higher
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 9
- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
- Temporarily replace the certification ECU (smart key ECU assembly) (Refer to REMOVAL [10/2014 - ] ).
Result:
NEXT
See step 10
- REGISTER ECU COMMUNICATION ID
- Reregister the ECU communication ID (Refer to REGISTRATION [10/2014 - 10/2015] ).
Result:
NEXT
See step 11
- CHECK WHETHER HYBRID CONTROL SYSTEM STARTS
- Check that the hybrid control system starts with an already registered vehicle key.
OK
Hybrid control system starts normally.
Result:
OK
END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)
Result:
NG
REPLACE POWER MANAGEMENT CONTROL ECU
(Refer to REMOVAL [10/2014 - 10/2015] )
- Check that the hybrid control system starts with an already registered vehicle key.
- REPLACE POWER MANAGEMENT CONTROL ECU
- Temporarily replace the power management control ECU with a new or known good one (Refer to REMOVAL [10/2014 - 10/2015] ).
Result:
NEXT
See step 13
- REGISTER ECU COMMUNICATION ID
- Reregister the ECU communication ID (Refer to REGISTRATION [10/2014 - 10/2015] ).
Result:
NEXT
See step 14
- CHECK WHETHER HYBRID CONTROL SYSTEM STARTS
- Check that the hybrid control system starts with an already registered vehicle key.
OK
Hybrid control system starts normally.
Result:
OK
END (POWER MANAGEMENT CONTROL ECU WAS DEFECTIVE)
Result:
NG
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
(Refer to REMOVAL [10/2014 - ] )
- Check that the hybrid control system starts with an already registered vehicle key.
