Removal [10/2014 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

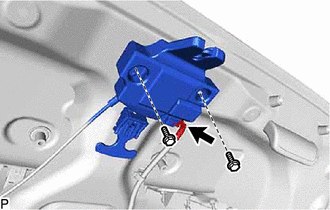

    1. Disconnect the connector.
      GTY476282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and disconnect the luggage compartment door lock assembly.

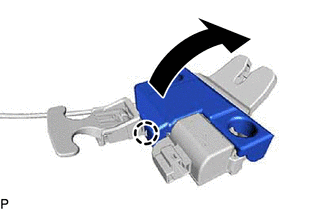

    3. Disengage the claw as shown in the illustration.
      GTY476280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

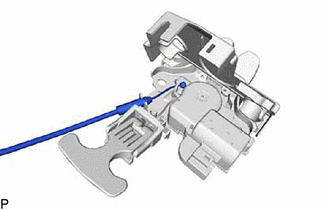

    4. Disconnect the luggage door lock control cable sub-assembly to remove the luggage compartment door lock assembly.
      GTY476281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
