Removal [10/2014 - ]: Procedure

  1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 5

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

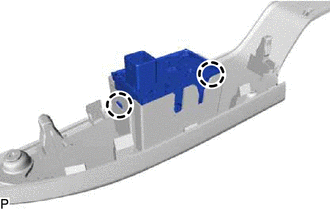

    1. Disengage the 2 claws to remove the rear power window regulator switch assembly from the rear upper door armrest base panel.
      GTY366650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
