Inspection [10/2014 - ]: Procedure
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
- Check that the LED illuminates.
- Apply auxiliary battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
OK
Measurement Condition Specified Condition Auxiliary battery positive (+) → 18 (LED)

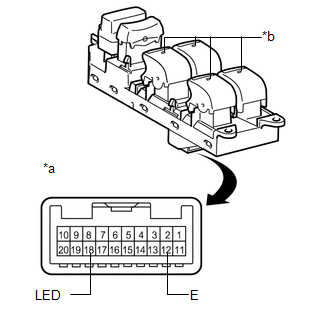

Auxiliary battery negative (-) → 12 (E)LED illuminates TEXT IN ILLUSTRATION*a Component without harness connected
(Multiplex Network Master Switch Assembly)*b LED If the result is not as specified, replace the multiplex network master switch assembly.
- Apply auxiliary battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
- Check that the LED illuminates.
