Removal [10/2014 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

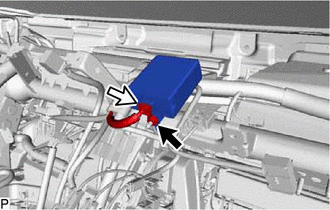

    1. Remove the nut.
      GTY379308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the vehicle approaching speaker controller.
