Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [10/2014 - ]

  2. DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY

    See step  2 See step  2

  3. REMOVE FRONT SEAT CUSHION SHIELD

    See step  10 See step  10

  4. REMOVE SEAT VARIABLE CUSHION SWITCH
    1. Disengage the clamp.

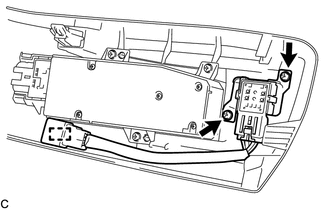

      GTY375188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and seat variable cushion switch from the front seat cushion shield.
  5. REMOVE NO. 2 SEAT WIRE
    1. Disconnect the connector to remove the No. 2 seat wire from the seat variable cushion switch.
      GTY375377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
