Components [10/2014 - ]: Illustration

GTY544559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Rear Seatback Heater Replacement Components With Torque Specifications (1 Of 3)

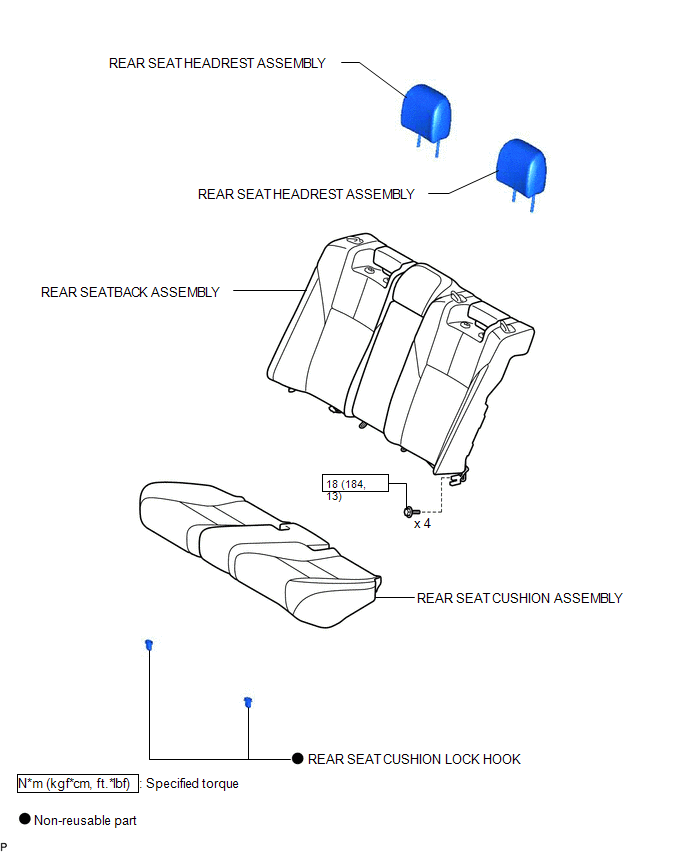

GTY572214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Rear Seatback Heater Replacement Components With Torque Specifications (2 Of 3)
GTY574002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Rear Seatback Heater Replacement Components With Torque Specifications (3 Of 3)

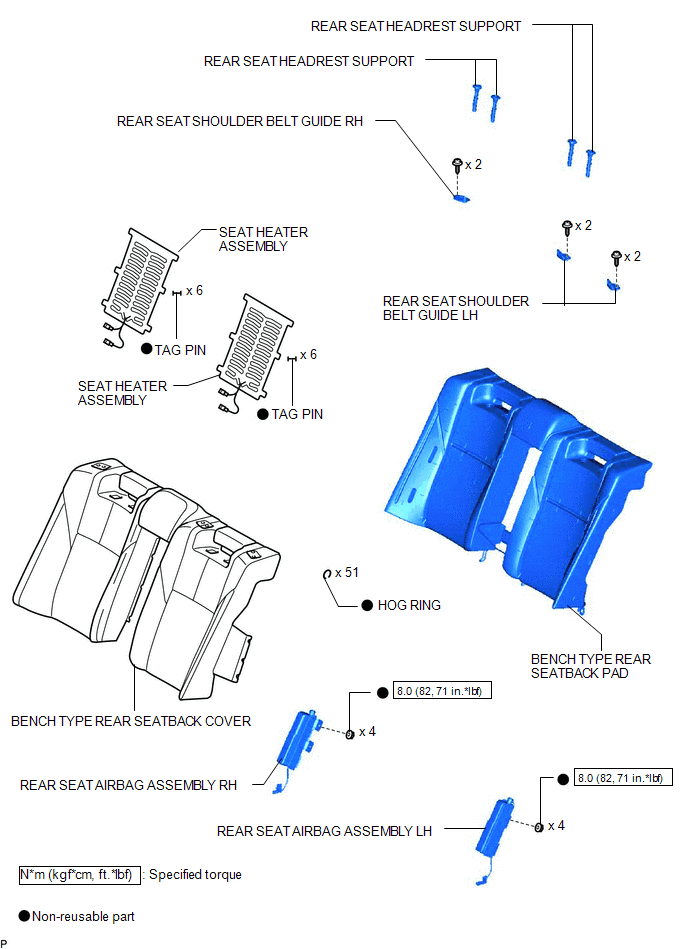

GTY604758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
