Removal [10/2014 - ]: Procedure

  1. REMOVE REAR SEAT CUSHION ASSEMBLY

    See step  5

  2. REMOVE REAR SEAT CUSHION FRAME SUB-ASSEMBLY

    See step  20 See step  20

  3. REMOVE BENCH TYPE REAR SEAT CUSHION COVER

    See step  21 See step  21

  4. REMOVE SEAT HEATER ASSEMBLY

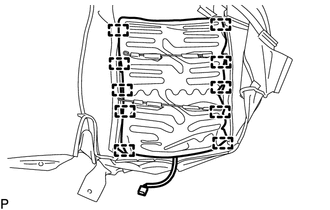

    1. Remove the 10 tag pins and seat heater assembly from the bench type rear seat cushion cover.
      GTY371266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for both the RH side and LH side.
