Installation [10/2014 - ]: Procedure

1. Place the rear seatback assembly in the cabin.
   NOTE:

   Be careful not to damage the vehicle body.

2. Engage the 3 hooks.
3. Connect the rear seat outer belt assembly RH, rear seat inner with center belt assembly LH and rear seat outer belt assembly LH to the rear seatback assembly.
4. Install the rear seatback assembly with the 4 bolts.

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

5. Engage the 2 clamps.
6. Connect each connector.
7. Connect the 2 rear seat airbag assembly connectors.
8. Connect the rear seat inner with center belt assembly LH to the rear seat shoulder belt guide LH.
9. Connect the rear seat outer belt assembly RH to the rear seat shoulder belt guide RH.
10. Connect the rear seat outer belt assembly LH to the rear seat shoulder belt guide LH.

1. Engage the 2 claws to install a new rear seat cushion lock hook.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the RH side and the LH side.

1. Place the rear seat cushion assembly in the cabin.
   NOTE:

   Be careful not to damage the vehicle body.

2. w/ Seat Heater System:
   1. Connect the 2 seat heater assembly connectors.

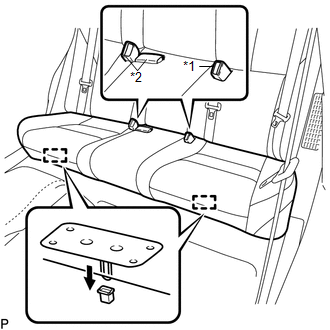

3. Pass the buckle of the rear seat inner with center belt assembly LH and buckle of the rear seat inner with center belt assembly RH through the rear seat cushion assembly.
4. Engage the 2 hooks on the front side of the rear seat cushion assembly to the vehicle body as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Rear Seat Inner with Center Belt Assembly LH
   *2	Rear Seat Inner with Center Belt Assembly RH

5. Confirm that the rear seat cushion assembly is securely installed.
   NOTE:

   When installing the rear seat cushion assembly, make sure that the seat belt buckles are not under the rear seat cushion assembly.

Refer to PROCEDURE - Step 3

(Refer to DIAGNOSIS SYSTEM [10/2014 - ] )
