Seats (Service Information) (Hybrid)
>>
Rear Seat Assembly
>>
Components [10/2015 - ]
>>
Illustration
Components [10/2015 - ]: Illustration
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

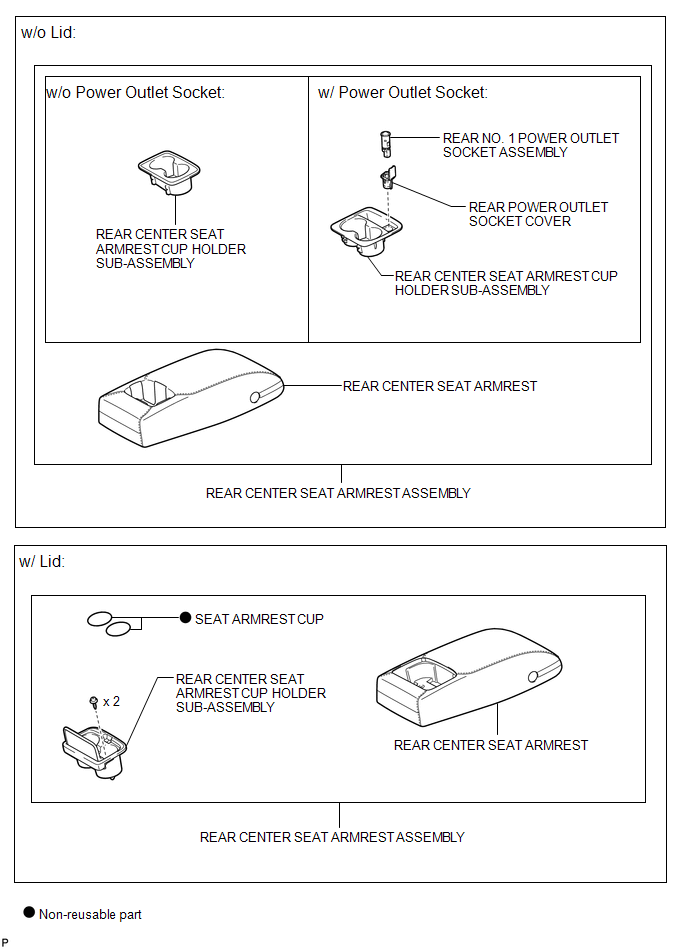

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

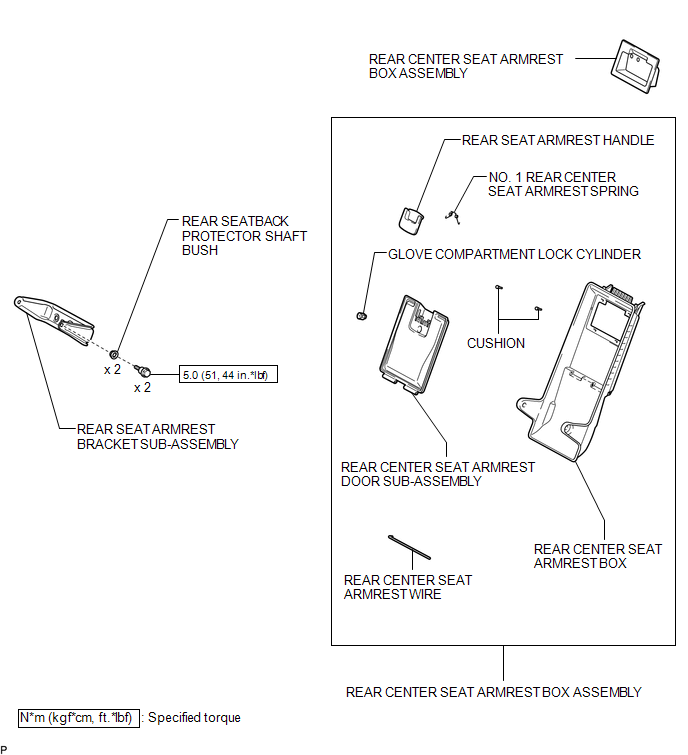

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

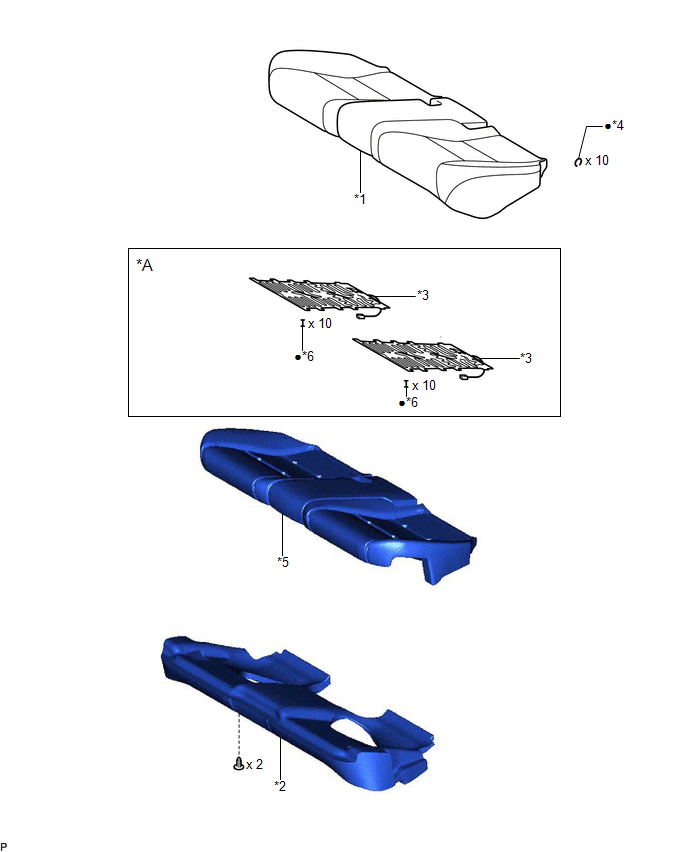

*A
w/ Seat Heater System
-
-
*1
BENCH TYPE REAR SEATBACK COVER
*2
REAR SEAT CUSHION FRAME SUB-ASSEMBLY
*3
SEAT HEATER ASSEMBLY
*4
HOG RING
*5
REAR SEAT CUSHION PAD
*6
TAG PIN
•
Non-reusable part
-
-
