Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [10/2014 - ]

  2. DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY

    See step  2 See step  2

  3. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB (w/ Seat Position Memory System)

    See step  7 See step  7

  4. REMOVE RECLINING POWER SEAT SWITCH KNOB (w/ Seat Position Memory System)

    See step  8 See step  8

  5. REMOVE FRONT SEAT CUSHION SHIELD (w/o Seat Position Memory System)

    See step  9 See step  9

  6. REMOVE FRONT SEAT CUSHION SHIELD (w/ Seat Position Memory System)

    See step  10 See step  10

  7. REMOVE FRONT POWER SEAT SWITCH (w/ Seat Position Memory System)

    Refer to PROCEDURE - Step 6

  8. REMOVE FRONT LUMBAR POWER SEAT SWITCH
    1. w/o Seat Position Memory System:
      1. Disconnect the connector to remove the front lumbar power seat switch.
        GTY375380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Seat Position Memory System:

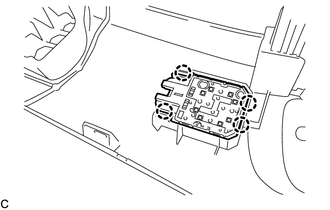

      1. Disengage the 4 claws to remove the front lumbar power seat switch from the front seat cushion shield.
        GTY375375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
