Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [10/2014 - ]

  2. DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY

    See step  2 See step  2

  3. REMOVE FRONT SEAT INNER CUSHION SHIELD

    See step  3 See step  3

  4. REMOVE FRONT SEAT CUSHION SHIELD (w/o Seat Position Memory System)

    See step  9 See step  9

  5. REMOVE FRONT SEAT CUSHION SHIELD (w/ Seat Position Memory System)

    See step  10 See step  10

  6. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (w/o Variable Seat Cushion System)

    See step  16 See step  16

  7. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (w/ Variable Seat Cushion System)

    See step  17 See step  17

  8. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

    See step  18 See step  18

  9. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY

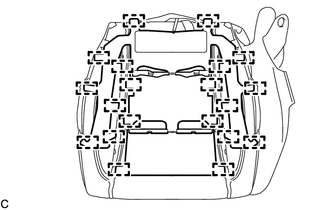

    1. Remove the 20 tag pins and front seat cushion heater assembly from the separate type front seat cushion cover.
      GTY364003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
