Inspection [10/2014 - ]: Procedure
- INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH
- w/ Climate Control Seat System:
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition S12-1 - C-1 Always Below 1 Ω S12-2 - S12-4 15 to 30 °C (59 to 86 °F) 7.6 to 16.5 kΩ S12-3 - C-2 Always Below 1 Ω S12-5 - C-5 Always Below 1 Ω S12-5 - B-2 Always Below 1 Ω C-3 - B-1 Always Below 1 Ω C-3 - C-5 15 to 30 °C (59 to 86 °F) 3.16 to 4.06 Ω TEXT IN ILLUSTRATION*a Component without harness connected
(Front Seat Cushion Heater Assembly LH)If the result is not as specified, replace the front seat cushion heater assembly LH.
- Measure the resistance according to the value(s) in the table below.
- w/o Climate Control Seat System:
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

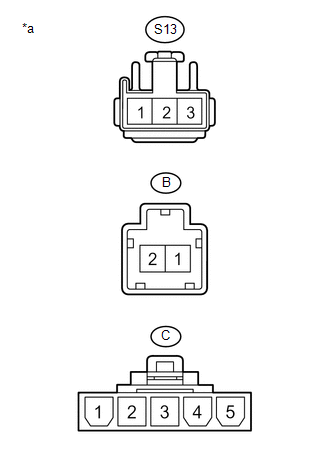

Tester Connection Condition Specified Condition S13-3 - C-1 Always Below 1 Ω S13-2 - C-4 Always Below 1 Ω S13-1 - C-5 Always Below 1 Ω S13-1 - B-2 Always Below 1 Ω S13-1 - C-2 15 to 30 °C (59 to 86 °F) 7.6 to 16.5 kΩ B-1 - C-3 Always Below 1 Ω C-3 - C-5 15 to 30 °C (59 to 86 °F) 3.22 to 4.13 Ω TEXT IN ILLUSTRATION*a Component without harness connected
(Front Seat Cushion Heater Assembly LH)If the result is not as specified, replace the front seat cushion heater assembly LH.
- Measure the resistance according to the value(s) in the table below.
- w/ Climate Control Seat System:
- INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY RH
- w/ Climate Control Seat System:
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

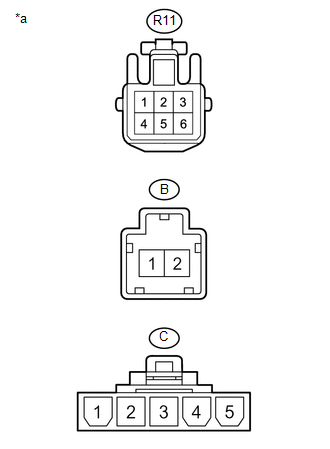

Tester Connection Condition Specified Condition R11-1 - C-1 Always Below 1 Ω R11-2 - R11-4 15 to 30 °C (59 to 86 °F) 7.6 to 16.5 kΩ R11-3 - C-2 Always Below 1 Ω R11-5 - C-5 Always Below 1 Ω R11-5 - B-2 Always Below 1 Ω C-3 - B-1 Always Below 1 Ω C-3 - C-5 15 to 30 °C (59 to 86 °F) 3.16 to 4.06 Ω TEXT IN ILLUSTRATION*a Component without harness connected
(Front Seat Cushion Heater Assembly RH)If the result is not as specified, replace the front seat cushion heater assembly RH.
- Measure the resistance according to the value(s) in the table below.
- w/o Climate Control Seat System:
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

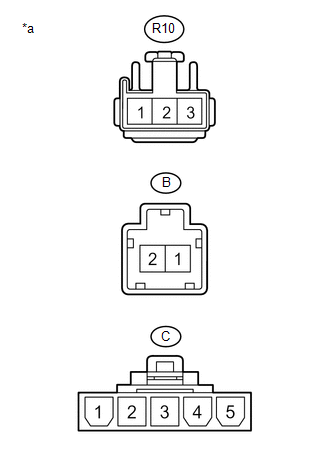

Tester Connection Condition Specified Condition R10-3 - C-1 Always Below 1 Ω R10-2 - C-4 Always Below 1 Ω R10-1 - C-5 Always Below 1 Ω R10-1 - B-2 Always Below 1 Ω R10-1 - C-2 15 to 30 °C (59 to 86 °F) 7.6 to 16.5 kΩ B-1 - C-3 Always Below 1 Ω C-3 - C-5 15 to 30 °C (59 to 86 °F) 3.22 to 4.13 Ω TEXT IN ILLUSTRATION*a Component without harness connected
(Front Seat Cushion Heater Assembly RH)If the result is not as specified, replace the front seat cushion heater assembly RH.
- Measure the resistance according to the value(s) in the table below.
- w/ Climate Control Seat System:
