Components [10/2014 - 06/2017]: Illustration

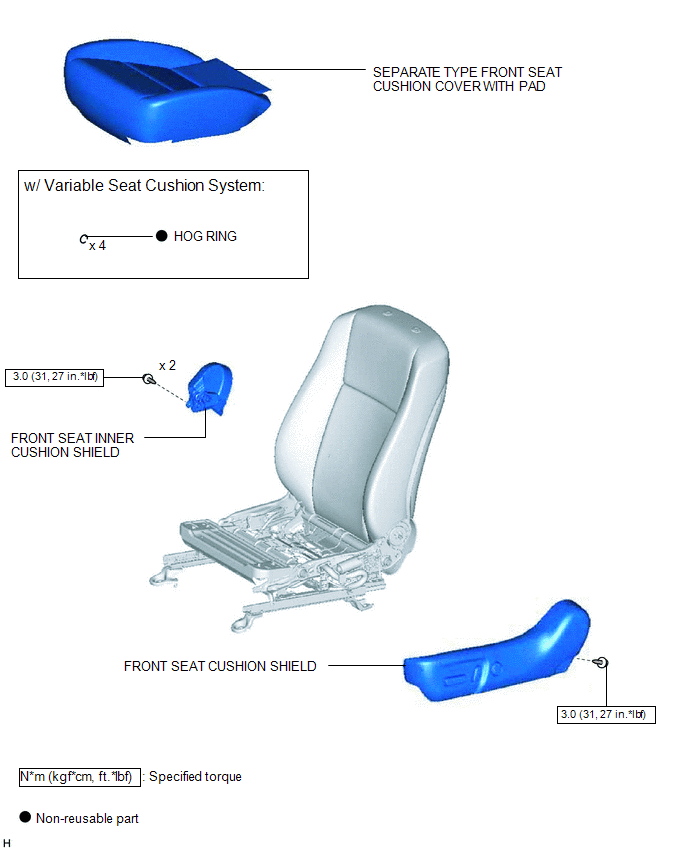

Fig 1: Front Seat Cushion Heater Replacement Components With Torque Specifications
GTY568040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

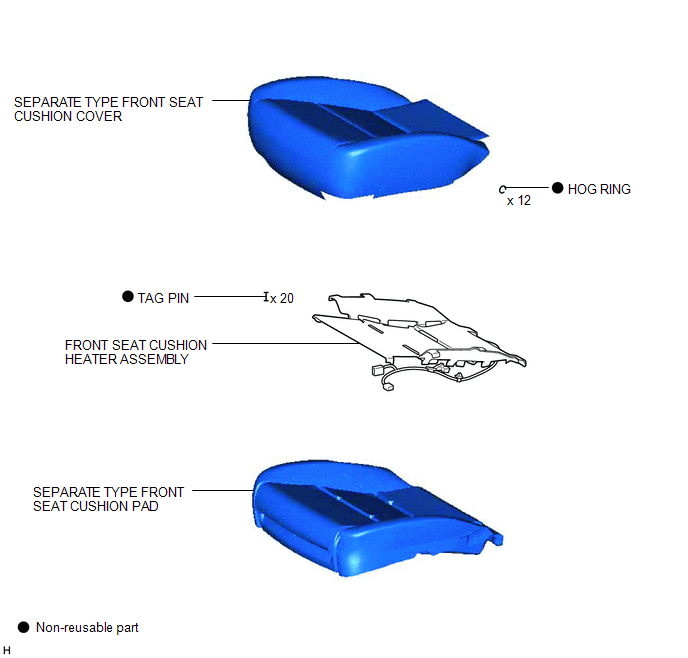

GTY603653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
