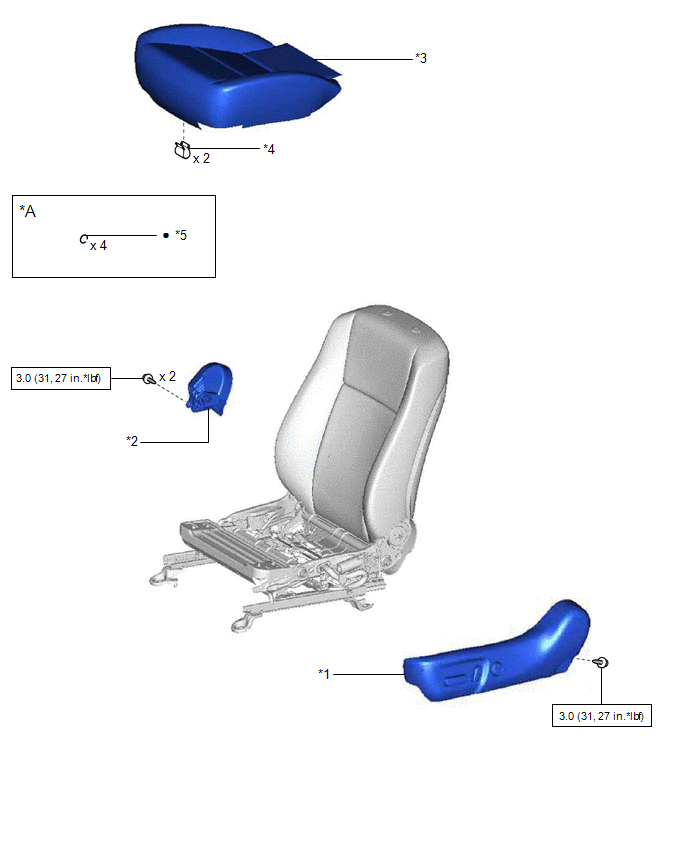

Components [06/2017 - ]: Illustration
| Callout | Description | Callout | Description |
| *A | w/ Variable Seat Cushion System | - | - |
| *1 | FRONT SEAT CUSHION SHIELD | *2 | FRONT SEAT INNER CUSHION SHIELD |
| *3 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD | *4 | U-CLIP |
| *5 | HOG RING | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
