Installation [10/2014 - ]: Procedure

1. Place the front seat assembly in the cabin.
   NOTE:

   Be careful not to damage the vehicle body.

2. Connect each connector and engage each clamp under the front seat assembly.
3. Connect the cable to the negative (-) auxiliary battery terminal.
4. Temporarily install the front seat assembly with the 4 bolts.
5. Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.

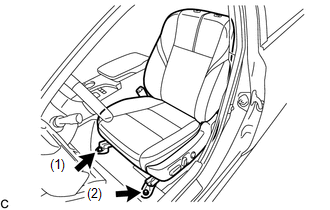

6. Tighten the 2 bolts on the front side of the front seat assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

   NOTE:

   Tighten the bolts in the order indicated in the illustration.

7. Operate the slide and vertical power seat switch knob and move the front seat assembly to the foremost position.
8. Tighten the 2 bolts on the rear side of the front seat assembly.

   Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

1. Engage the 2 claws to install the rear inner front seat track cover.

1. Engage the 2 claws to install the rear outer front seat track cover.

1. Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.
2. Engage the 4 claws to install the front inner seat track bracket cover.

1. Engage the 4 claws to install the front outer seat track bracket cover.

Refer to PROCEDURE - Step 3

(Refer to OPERATION CHECK [10/2014 - ] )

(Refer to OPERATION CHECK [10/2014 - ] )

(Refer to OPERATION CHECK [10/2014 - ] )

(Refer to DIAGNOSIS SYSTEM [10/2014 - ] )

(Refer to INITIALIZATION [10/2014 - ] )
