Components [10/2015 - 06/2017]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

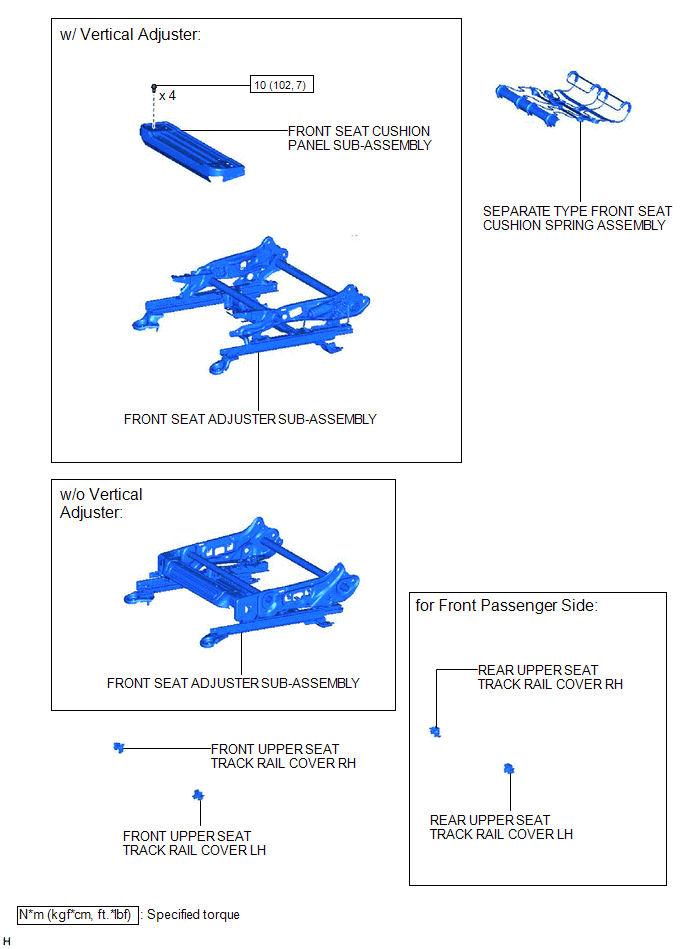

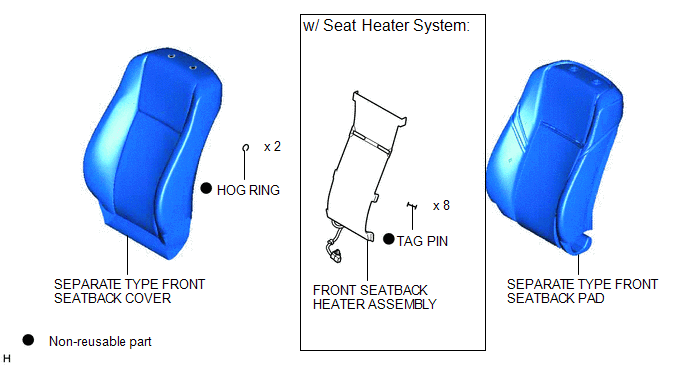

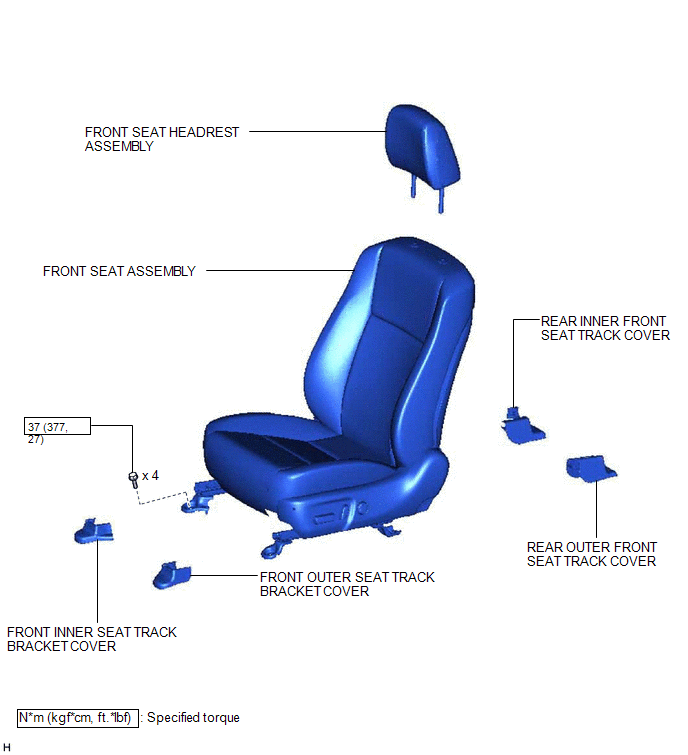

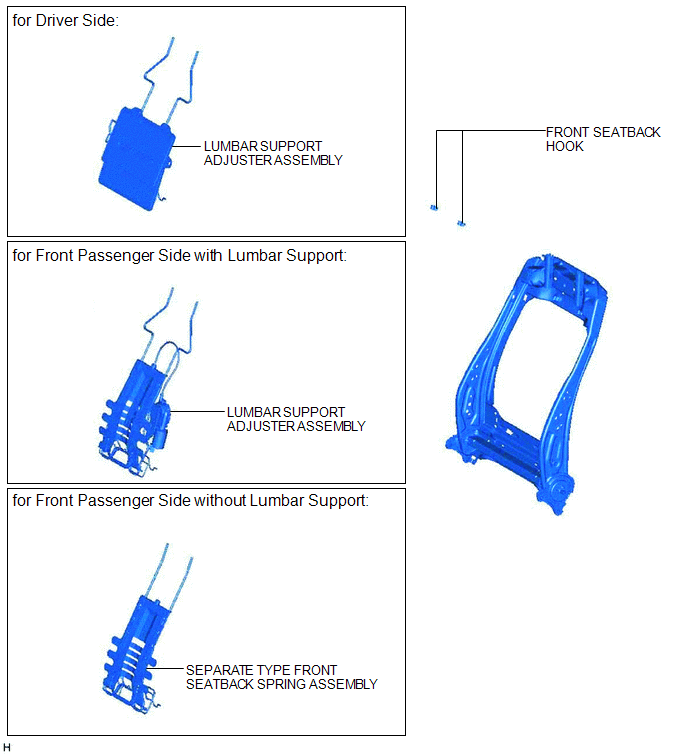

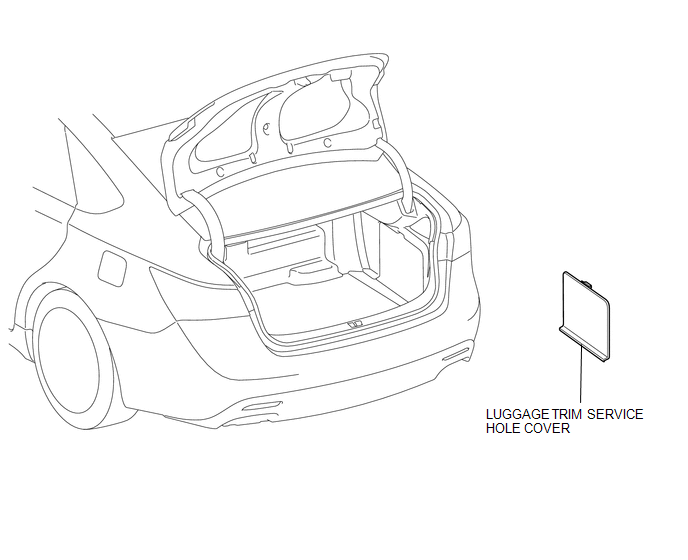

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

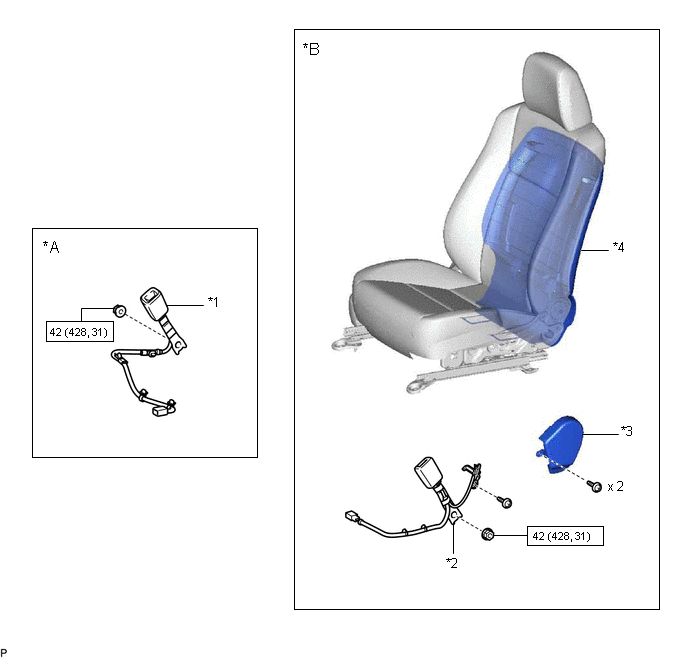

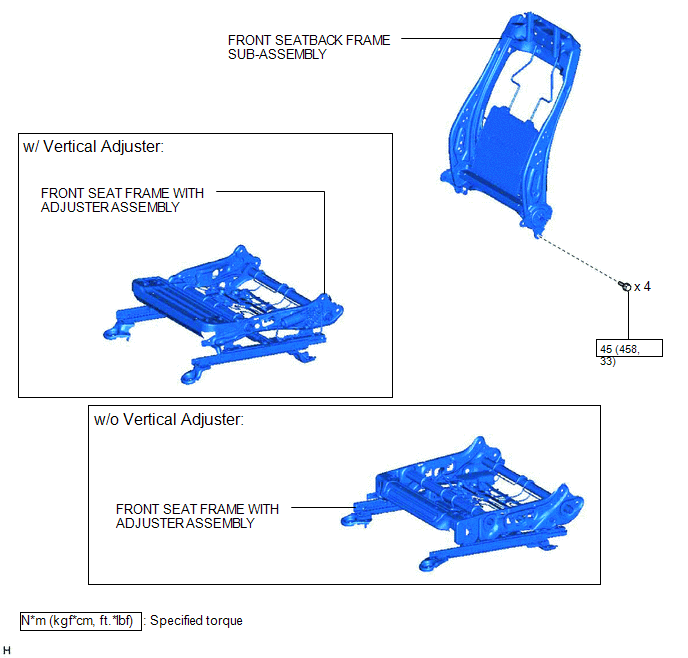

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT SEAT INNER BELT ASSEMBLY LH	*2	FRONT SEAT INNER BELT ASSEMBLY RH
*3	FRONT SEAT INNER CUSHION SHIELD	*4	FRONT SEATBACK BOARD SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

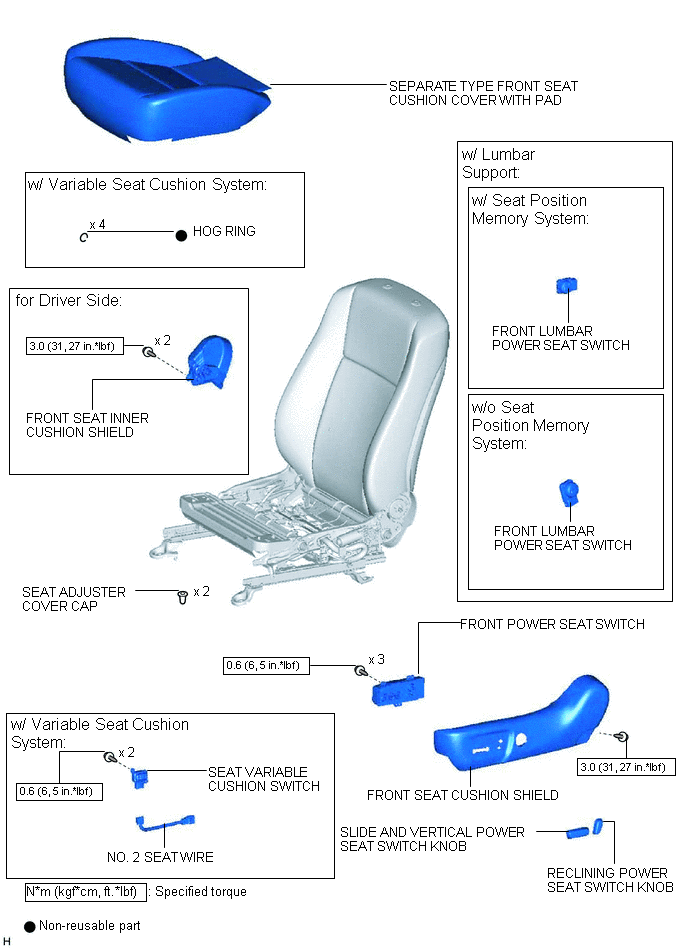

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

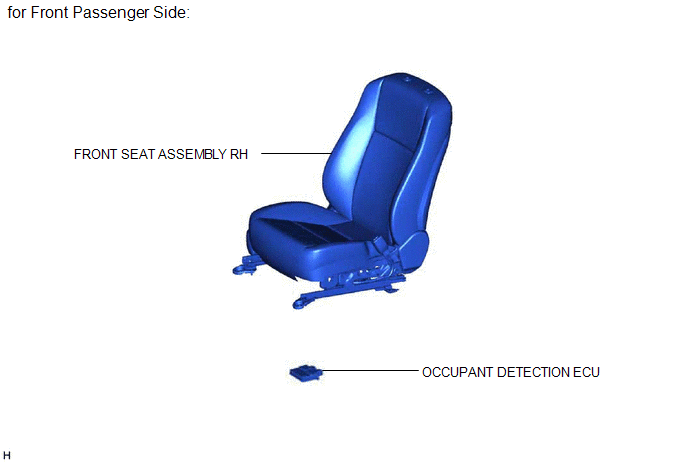

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

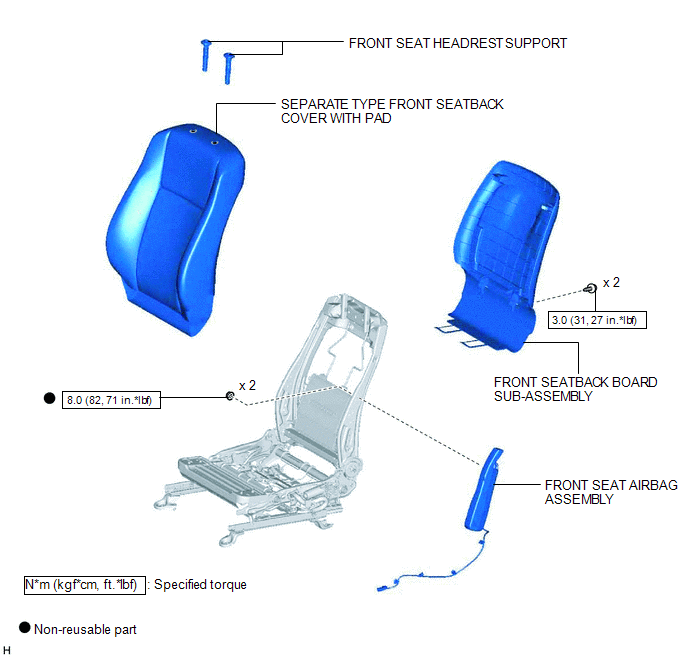

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (5 Of 8)

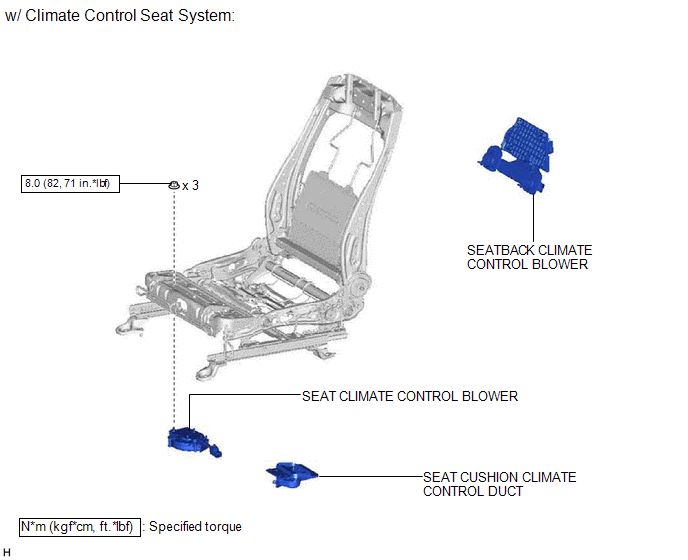

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (6 Of 8)

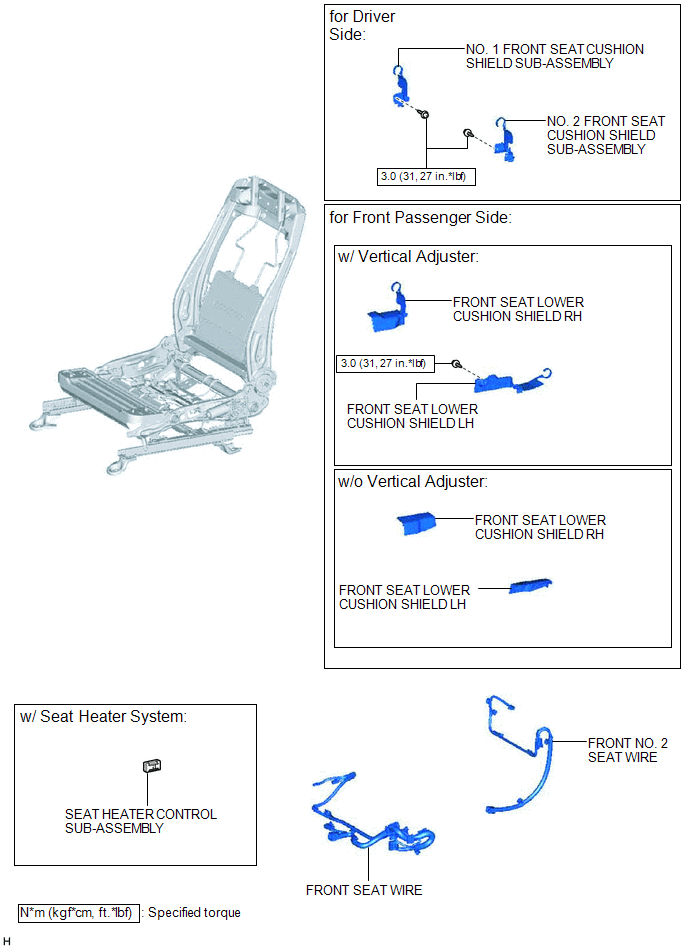

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (7 Of 8)

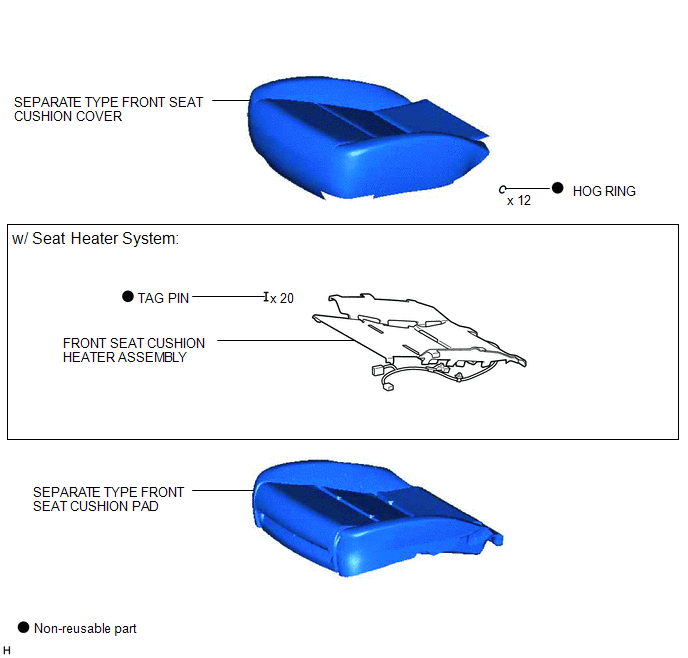

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (8 Of 8)
