Components [06/2017 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT SEAT INNER BELT ASSEMBLY LH	*2	FRONT SEAT INNER BELT ASSEMBLY RH
*3	FRONT SEAT INNER CUSHION SHIELD	*4	FRONT SEATBACK BOARD SUB-ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

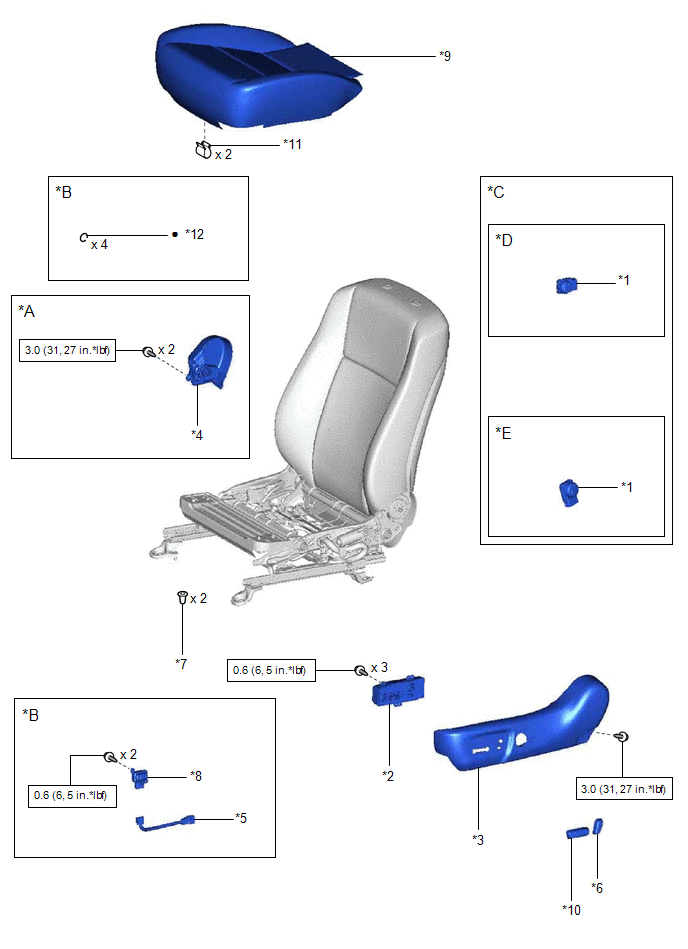

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Driver Side	*B	w/ Variable Seat Cushion System
*C	w/ Lumbar Support	*D	w/ Seat Position Memory System
*E	w/o Seat Position Memory System	-	-
*1	FRONT LUMBAR POWER SEAT SWITCH	*2	FRONT POWER SEAT SWITCH
*3	FRONT SEAT CUSHION SHIELD	*4	FRONT SEAT INNER CUSHION SHIELD
*5	NO. 2 SEAT WIRE	*6	RECLINING POWER SEAT SWITCH KNOB
*7	SEAT ADJUSTER COVER CAP	*8	SEAT VARIABLE CUSHION SWITCH
*9	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	*10	SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
*11	U-CLIP	*12	HOG RING
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (5 Of 8)

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (6 Of 8)

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (7 Of 8)

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (8 Of 8)
