Parts Location [10/2014 - ]: Illustration

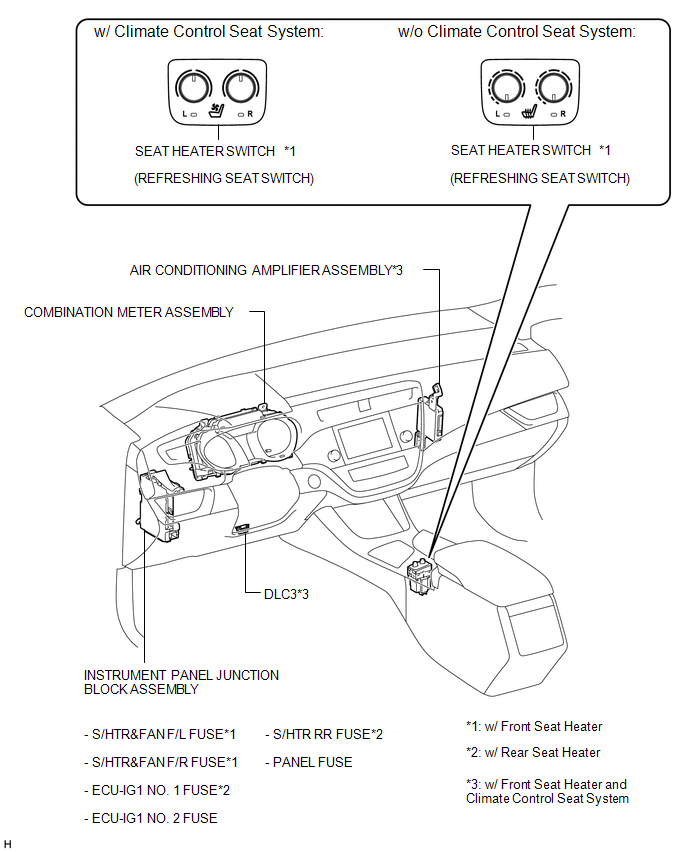

GTY368060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

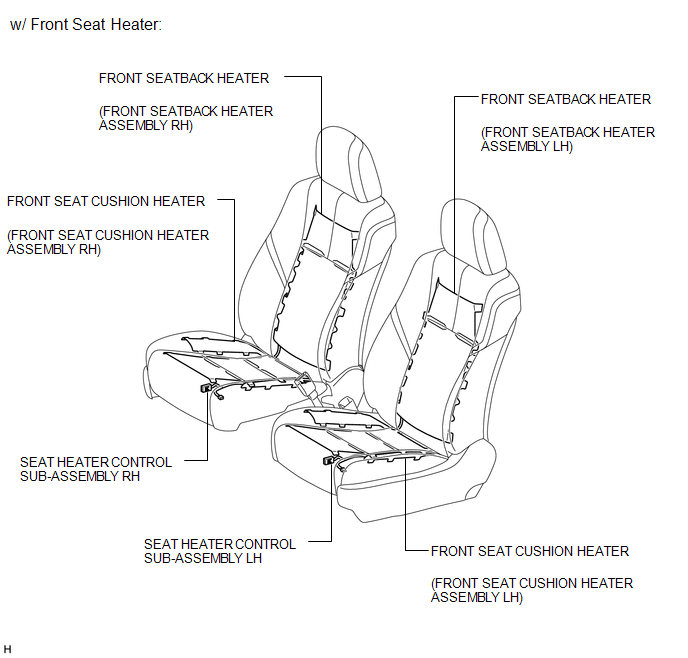

GTY381425

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

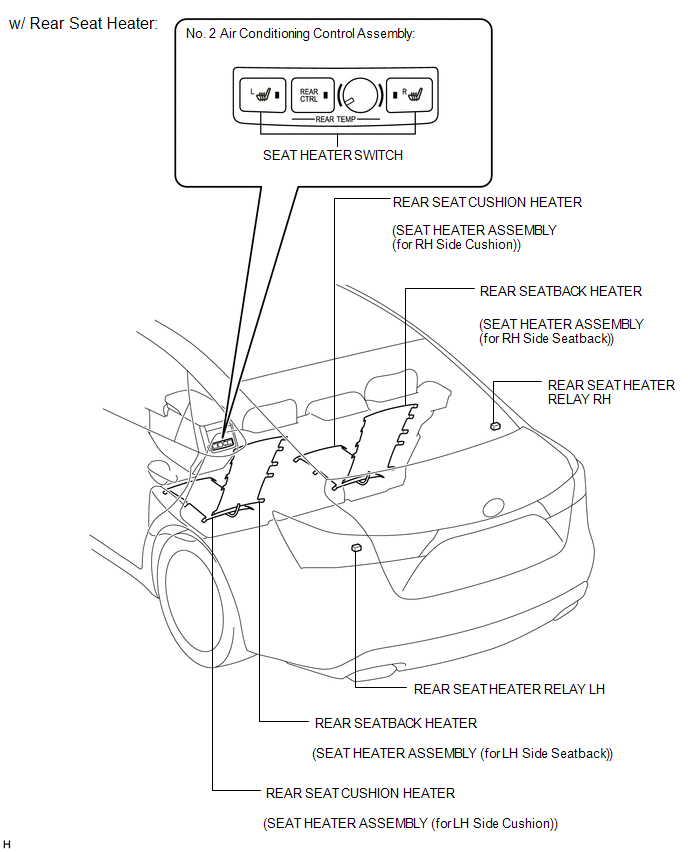

GTY538785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
