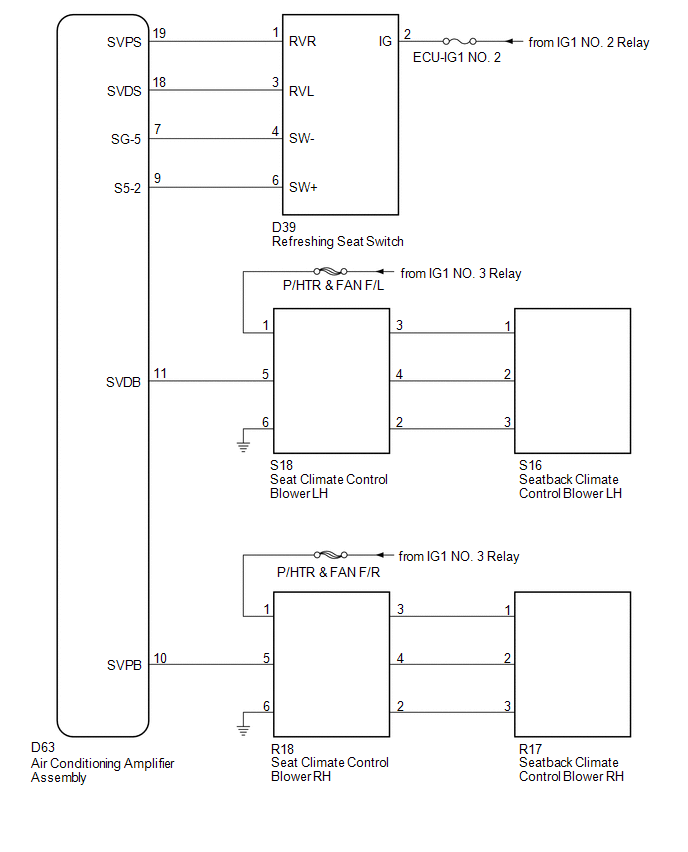

Climate Control Seat System does not Operate [10/2015 - ]: Wiring Diagram

GTY568984

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
