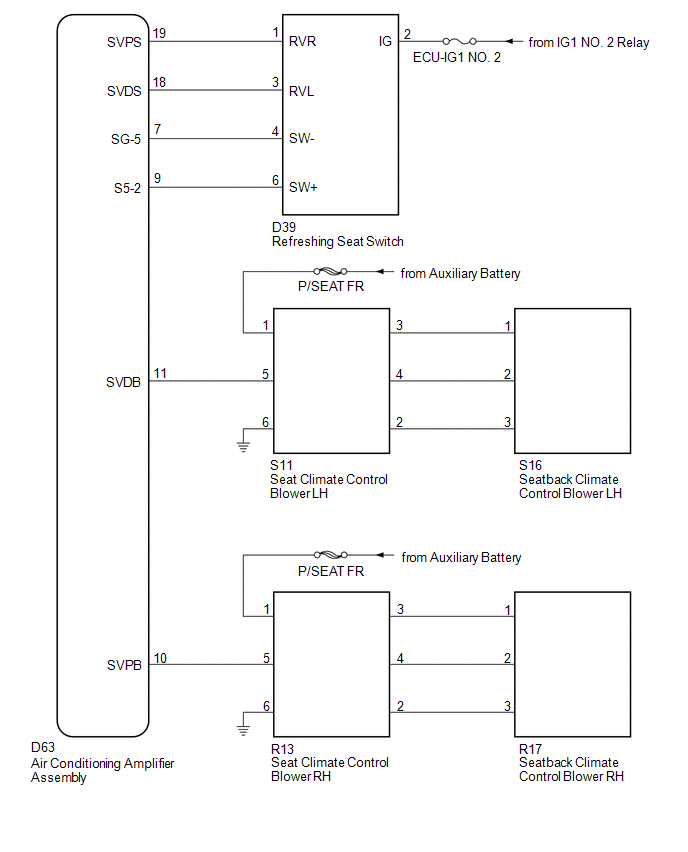

Climate Control Seat System does not Operate [10/2014 - 10/2015]: Wiring Diagram

GTY374125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
