Parts Location [10/2014 - 10/2015]: Illustration

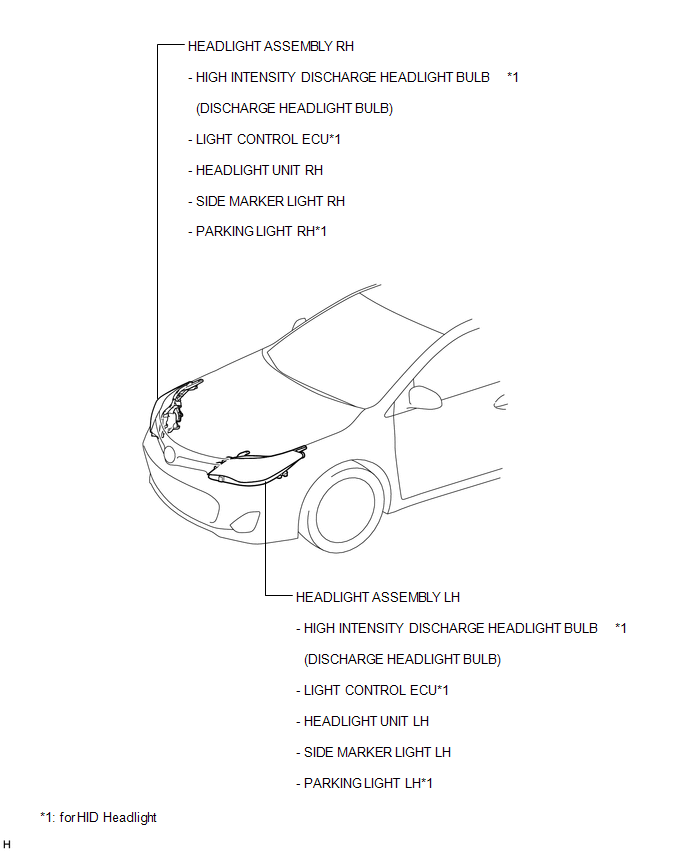

GTY379349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

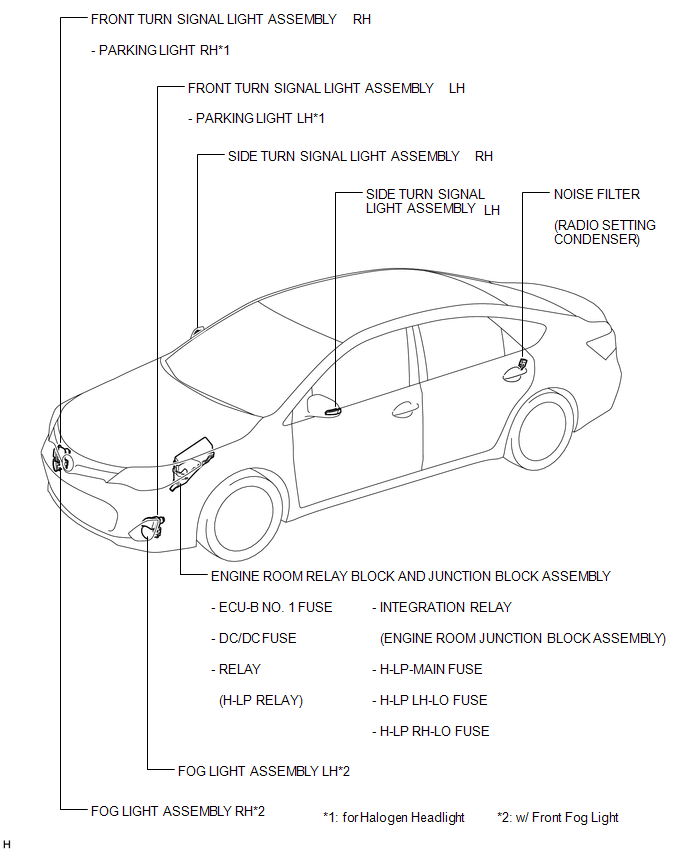

GTY366361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

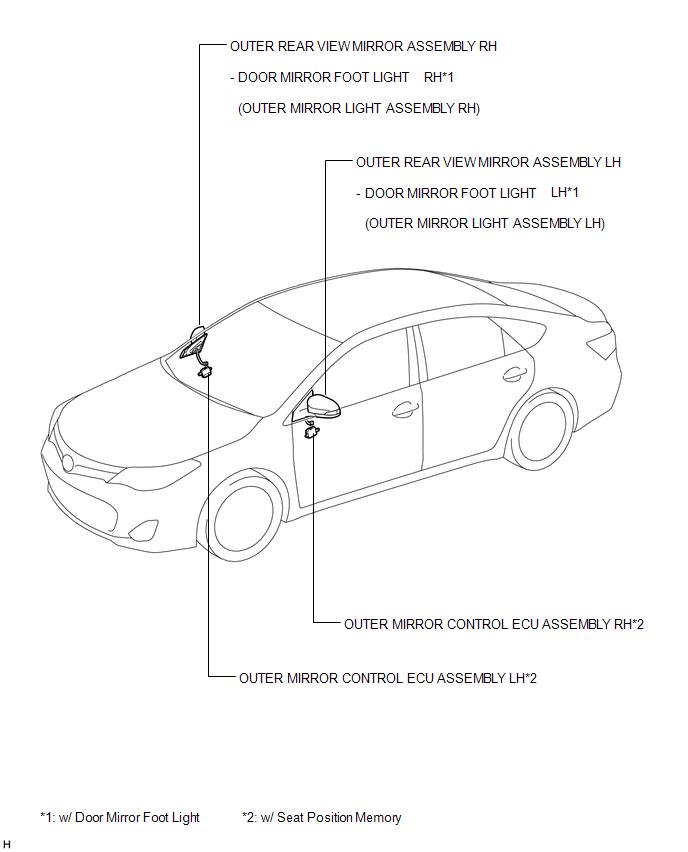

GTY384251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

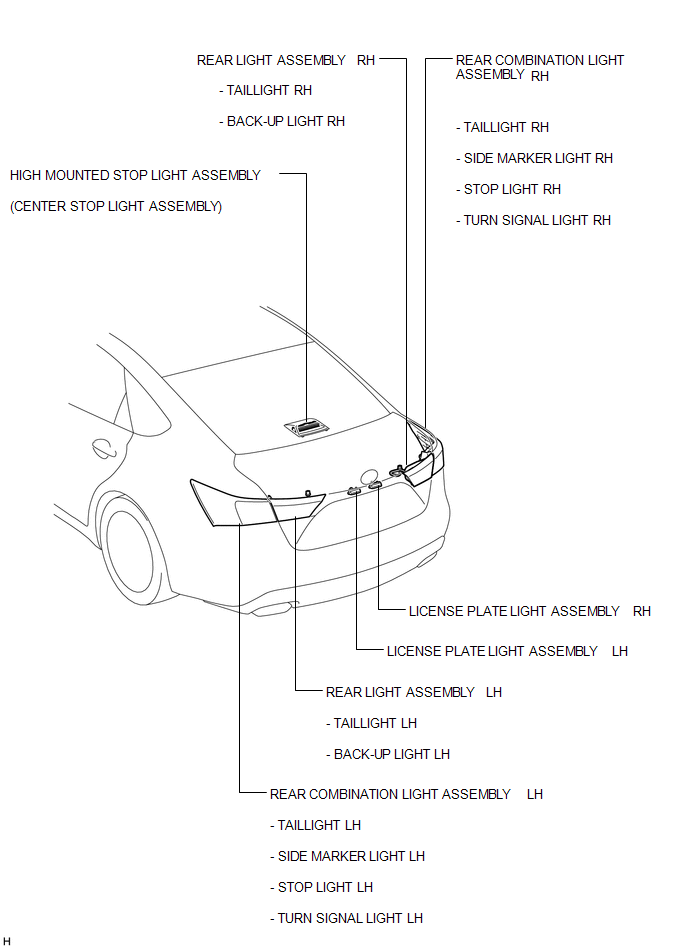

GTY369002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

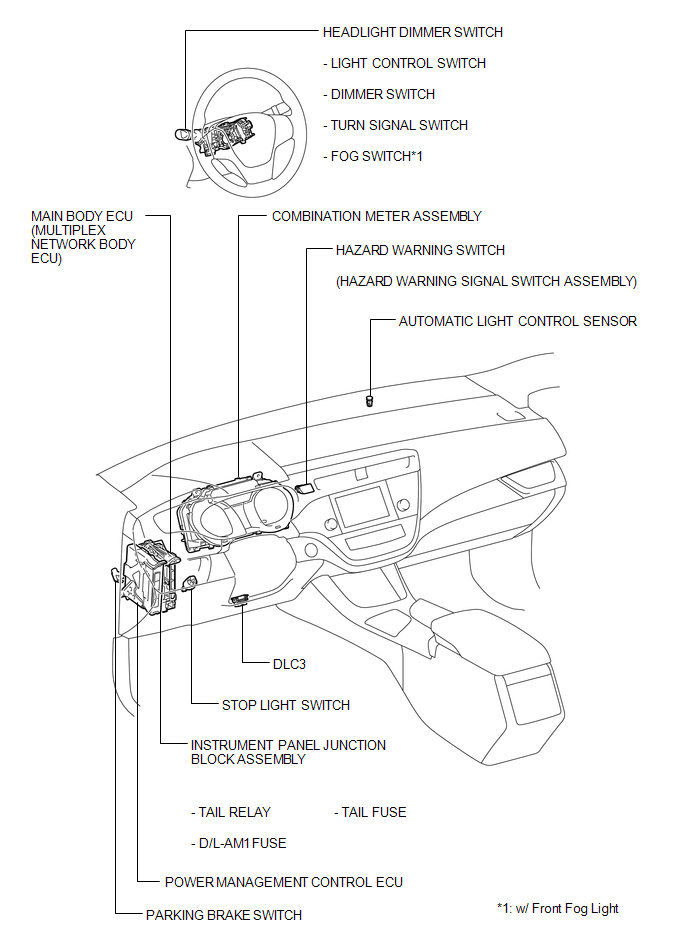

GTY382319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
