Removal [10/2014 - ]: Procedure
- REMOVE VISOR BRACKET COVER
Refer to PROCEDURE - Step 43 . Refer to PROCEDURE - Step 45
- REMOVE VISOR ASSEMBLY
Refer to PROCEDURE - Step 44 . Refer to PROCEDURE - Step 46
- REMOVE VANITY LIGHT BULB

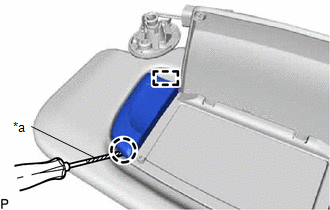

- Using a screwdriver with its tip wrapped with protective tape, disengage the claw and guide to remove the front lens holder LH.TEXT IN ILLUSTRATION
*a Protective Tape - Remove the front lens holder RH.
HINT:
Use the same procedure as for the LH side.
- Remove the 2 vanity light bulbs from the visor assembly.
- Using a screwdriver with its tip wrapped with protective tape, disengage the claw and guide to remove the front lens holder LH.
