Removal [10/2014 - ]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 8 and PROCEDURE - Step 8

  3. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 4

  4. REMOVE REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 24 and PROCEDURE - Step 24

  5. REMOVE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY
    1. Disconnect the connector.
    2. Using a T30 "TORX" socket wrench, remove the screw and rear door courtesy light switch assembly.

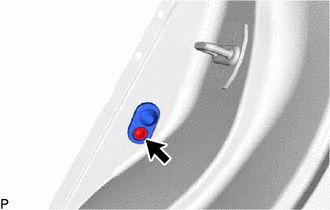

      GTY382392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
