Removal [10/2014 - ]: Procedure

  1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

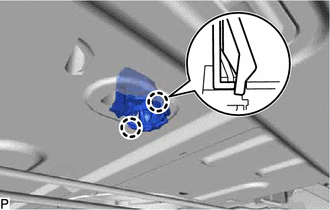

    1. Disengage the 2 claws.
      GTY368566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 1 luggage compartment light assembly.
  2. REMOVE LUGGAGE COMPARTMENT LIGHT BULB
    1. Disengage the claw.
      GTY370501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the luggage compartment light bulb from the luggage compartment light body assembly.
