Inspection [10/2014 - ]: Procedure
- INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
- Check the operation of the door lock motor.
- Move the door lock to the close (lock) position.
- Apply auxiliary battery voltage to the door lock motor and check operation of the door lock motor.
OK

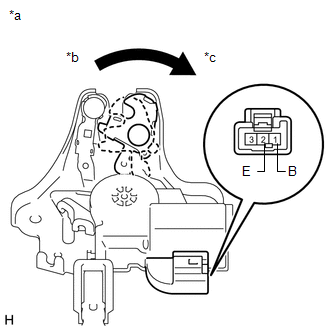

Measurement Condition Specified Condition Auxiliary battery positive (+) → 1 (B)
Auxiliary battery negative (-) → 2 (E)Luggage compartment door lock motor open (unlock) operation TEXT IN ILLUSTRATION*a Component without harness connected:
(Luggage Compartment Door Lock Assembly)*b Close (Lock) *c Open (Unlock) If the result is not as specified, replace the luggage compartment door lock assembly.
- Move the door lock to the close (lock) position.
- Check the operation of the door courtesy switch.
- Measure the resistance according to the value(s) in the table below.
Standard resistance

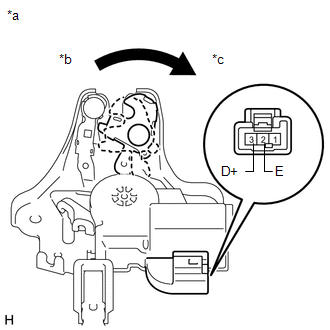

Measurement Condition Door Lock Condition Specified Condition 2 (E) - 3 (D+) Close (Lock) 10 kΩ or higher 2 (E) - 3 (D+) Open (Unlock) Below 1 Ω TEXT IN ILLUSTRATION*a Component without harness connected:
(Luggage Compartment Door Lock Assembly)*b Close (Lock) *c Open (Unlock) If the result is not as specified, replace the luggage compartment door lock assembly.
- Measure the resistance according to the value(s) in the table below.
- Check the operation of the door lock motor.
