DTC B15C3: Speaker Output Short [10/2014 - ]: Wiring Diagram

  1. for 9 Speakers

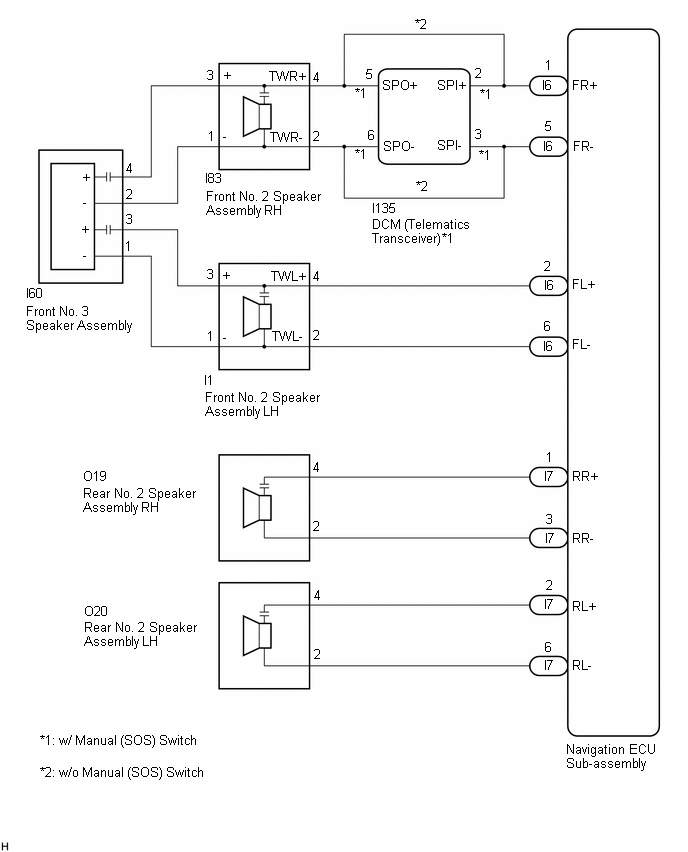

    GTY547328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 11 Speakers

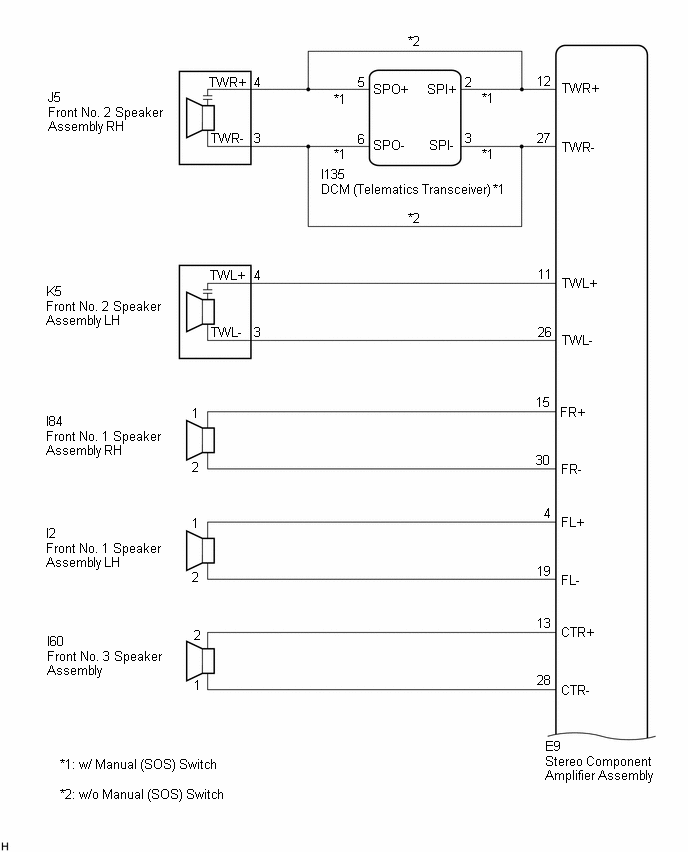

    GTY550398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

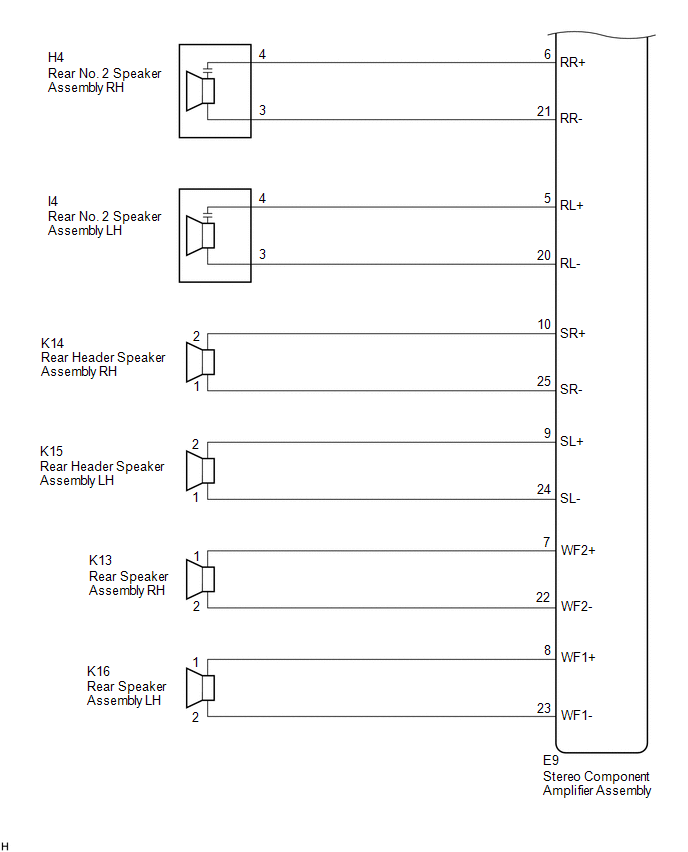

    GTY581164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
