Speaker Circuit [10/2014 - ]: Wiring Diagram

  1. for 9 Speakers

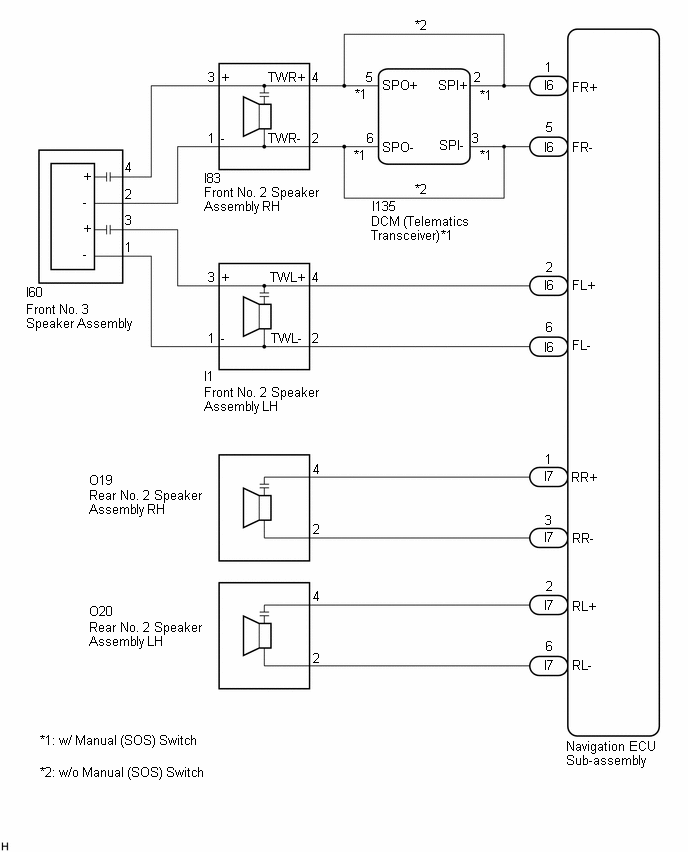

    GTY548087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

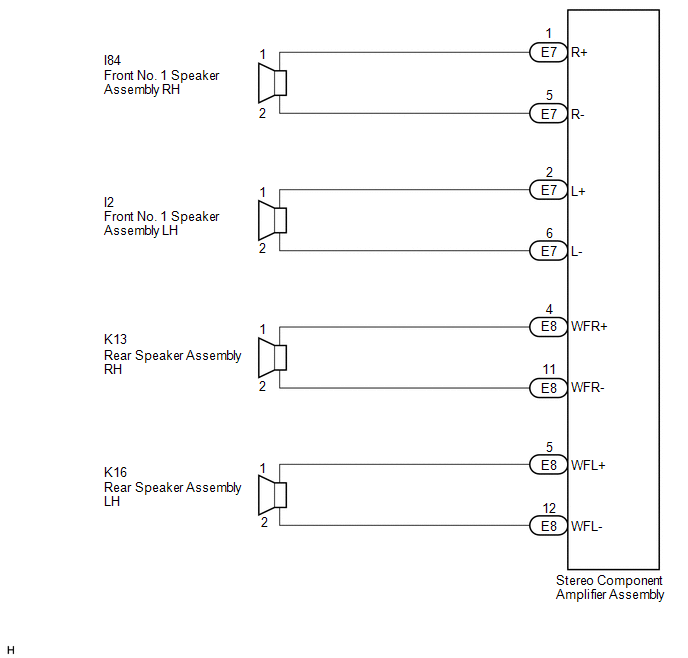

    GTY601176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 11 Speakers

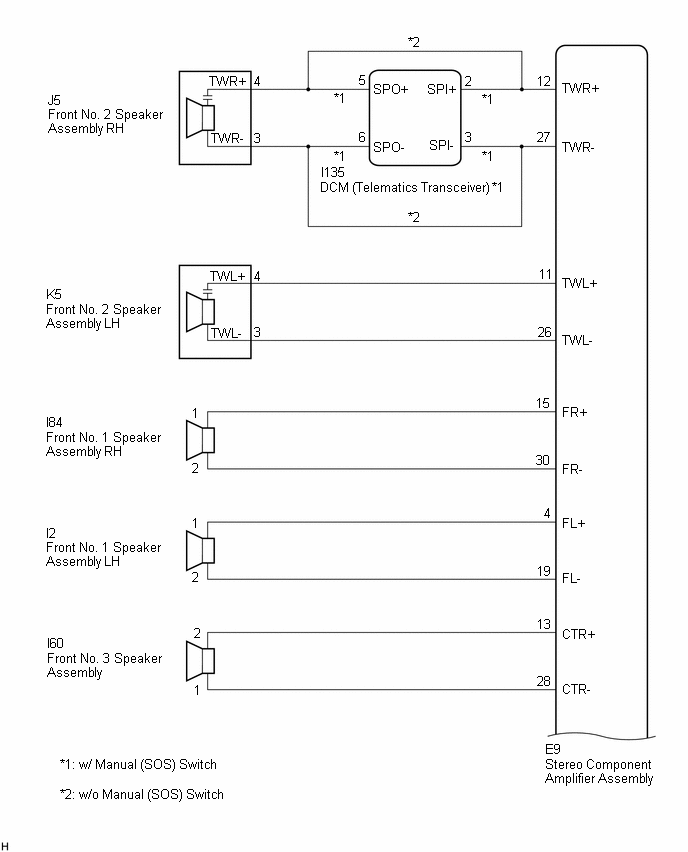

    GTY550400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

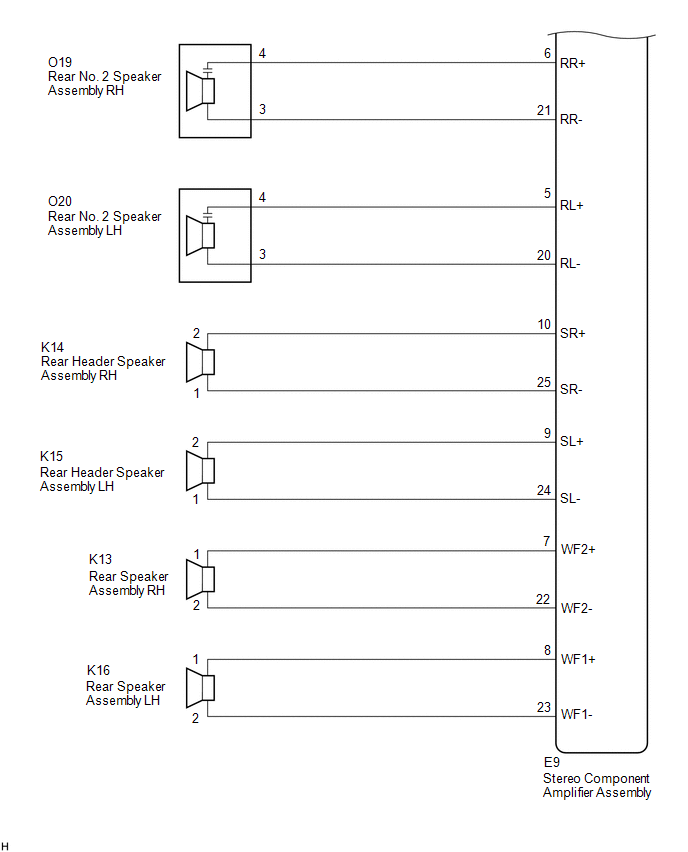

    GTY581165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
