Navigation System - Diagnostic Codes & Symptom Tests - (Hybrid)
>>
Navigation System
>>
Circuit Tests
>>
Sound Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier [10/2014 - ]
>>
Wiring Diagram

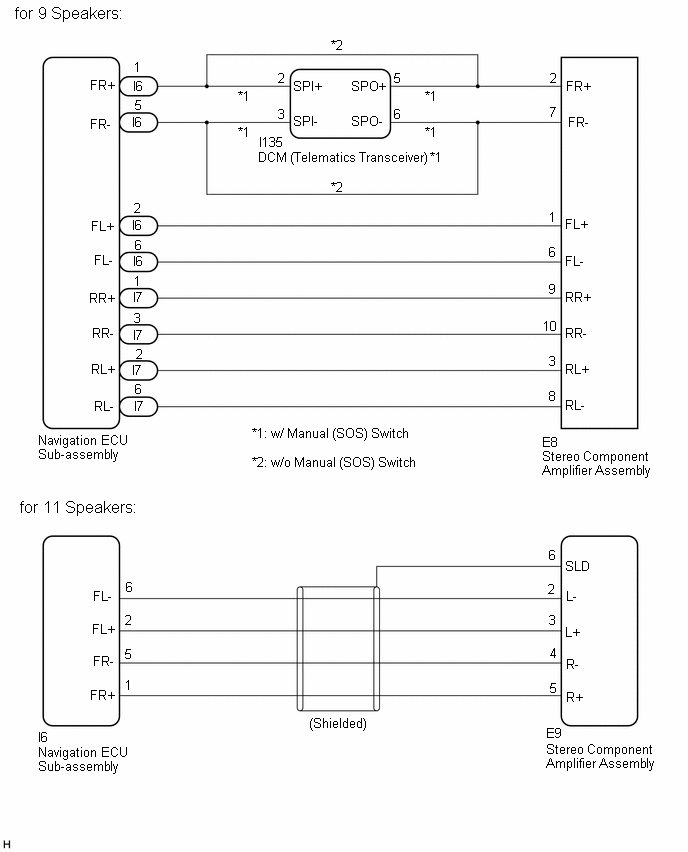

Sound Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier [10/2014 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
