Microphone Circuit between Microphone and Navigation Receiver Assembly [10/2015 - ]: Wiring Diagram

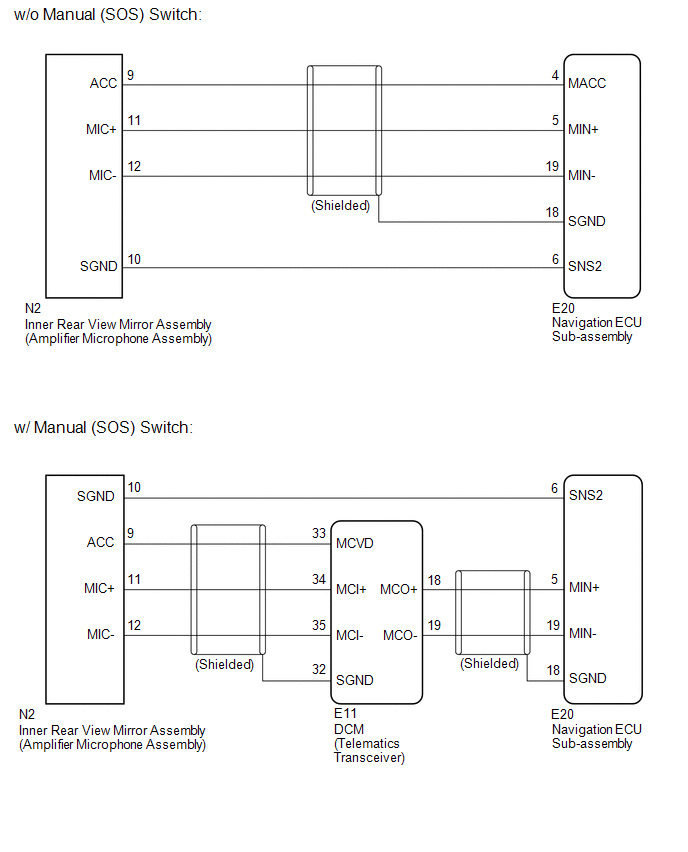

w/o Toyota Safety Sense P

GTY476257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

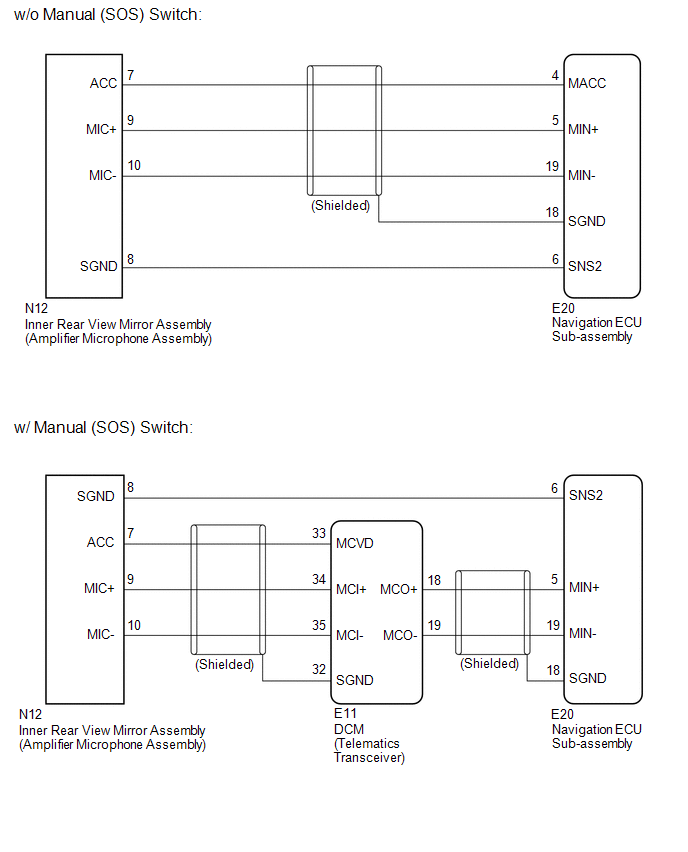

w/ Toyota Safety Sense P

GTY562201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
