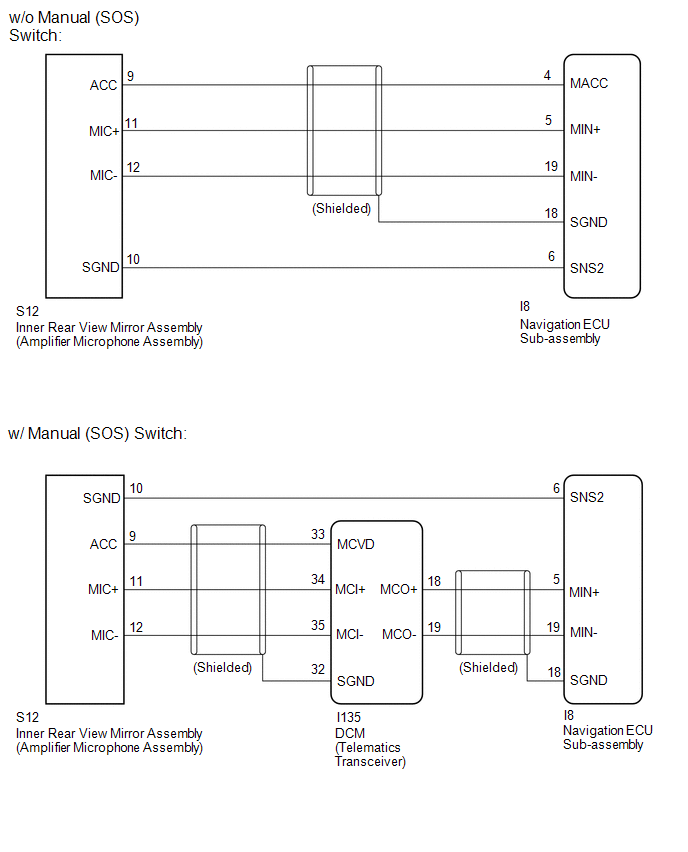

Microphone Circuit between Microphone and Navigation Receiver Assembly [10/2014 - 10/2015]: Wiring Diagram

GTY562248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
