Removal [10/2014 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE NO. 1 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 2 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 3

  5. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 5

  6. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 6

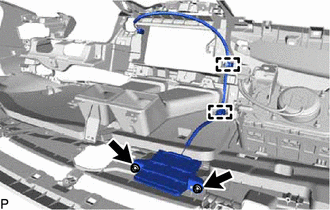

  7. REMOVE NAVIGATION ANTENNA ASSEMBLY
    1. Disengage the 2 clamps.
      GTY378660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and navigation antenna assembly.
