Satellite Radio Broadcast cannot be Received [10/2014 - ]: Procedure

1. Check if the vehicle is in an environment where reception is difficult due to something blocking the area above the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If the area above the vehicle is blocked, such as when in a building or tunnel, reception may not be possible.

   OK

   Area above vehicle is not blocked.

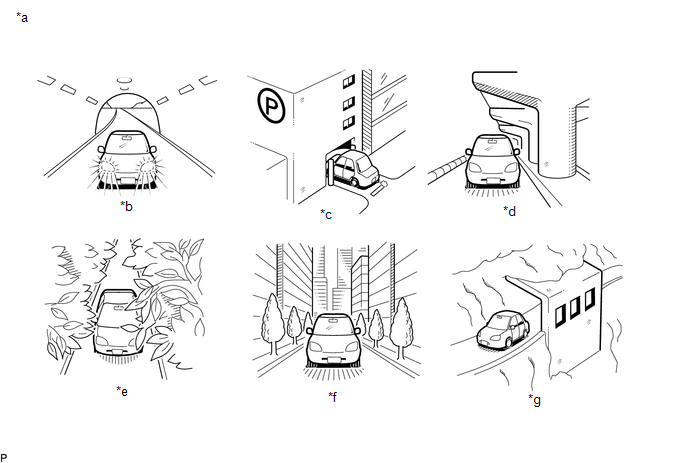

   TEXT IN ILLUSTRATION



   *a	Example	*b	In a tunnel
   *c	In a building	*d	Under an overpass
   *e	On a forest or tree-lined path	*f	Between tall buildings
   *g	Under a cliff or overhang	-	-

Result:

NG

END (MOVE VEHICLE TO LOCATION WHERE RECEPTION IS BETTER)

Result:

OK

See step  2

1. Check if CH001 (free broadcast) can be received.

   OK

   CH001 can be received.

Result:

NG

See step  6

Result:

OK

See step  3

1. Check the display screen.

   Result

   Result	Proceed to
   "SAT Ch Unauth" is displayed.	A
   "-----" is displayed.	B
   None of the displays above are shown.	C

Result:

B

THERE IS NO SONG/PROGRAM TITLE OR ARTIST NAME/FEATURE ASSOCIATED WITH CHANNEL AT THAT TIME

Result:

C

See step  6

Result:

A

See step  4

1. Check if the pay-type contract has been extended, or if the contract period has ended.

   OK

   Pay-type contract is valid.

Result:

NG

TO RECEIVE PAY-TYPE BROADCASTS, CONTRACT MUST BE MADE WITH SATELLITE RADIO COMPANY

Result:

OK

See step  5

1. Perform activation refresh by referring to the satellite radio company web site (https://care.siriusxm.com/retailrefresh_view.action).

   OK

   Malfunction disappears.

   HINT:

   The XM radio ID that is necessary to perform activation refresh is displayed when CH000 is selected on the satellite radio.

Result:

OK

END

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [10/2014 - 10/2015] Refer to PROBLEM SYMPTOMS TABLE [10/2015 - ] )

1. Check the display screen.

   Result

   Result	Proceed to
   "SAT Ck Antenna" is displayed.	A
   "SAT No Signal" is displayed.	B
   "Loading" is displayed.	B
   "SAT Ch Off Air" is displayed.	C
   After "SAT Ch Unavail" is displayed, display automatically switches to CH001.	D
   None of the displays above are shown.	E

Result:

B

END (MOVE VEHICLE TO LOCATION WHERE RECEPTION IS BETTER)

Result:

C

CHANNEL IS CURRENTLY NOT BEING BROADCASTED. BROADCAST CAN BE LISTENED TO OR VIEWED WHEN IT IS BACK ON AIR. (CONFIRM WITH RADIO STATION)

Result:

D

CHANNEL BROADCAST HAS ENDED (CONFIRM WITH RADIO STATION)

Result:

E

See step  13

Result:

A

See step  7

1. Replace the antenna cord sub-assembly with a new or known good one and check if radio broadcasts can be received normally (Refer to REMOVAL [10/2014 - ] ).

   OK

   Radio broadcasts can be received normally.

Result:

OK

END

Result:

NG

See step  8

1. Replace the No. 2 antenna cord sub-assembly with a new or known good one and check if radio broadcasts can be received normally (Refer to REMOVAL [10/2014 - ] ).

   OK

   Radio broadcasts can be received normally.

2. Proceed to the next step based on the inspection result.

   Result

   Result	Proceed to
   OK	A
   NG (w/o Manual (SOS) Switch)	B
   NG (w/ Manual (SOS) Switch)	C

Result:

OK

END

Result:

C

See step  11

Result:

B

See step  9

1. Replace the harness and connector with a new or known good one and check if radio broadcasts can be received normally.

   OK

   Radio broadcasts can be received normally.

Result:

OK

END

Result:

NG

See step  10

1. Replace the satellite radio antenna assembly with a new or known good one and check if radio broadcasts can be received normally (Refer to REMOVAL [10/2014 - ] ).

   OK

   Radio broadcasts can be received normally.

Result:

OK

END

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [10/2014 - 10/2015] or PROBLEM SYMPTOMS TABLE [10/2015 - ] )

1. Replace the harness and connector with a new or known good one and check if radio broadcasts can be received normally.

   OK

   Radio broadcasts can be received normally.

Result:

OK

END

Result:

NG

See step  12

1. Replace the telephone antenna assembly with a new or known good one and check if radio broadcasts can be received normally (Refer to REMOVAL [10/2014 - ] ).

   OK

   Radio broadcasts can be received normally.

Result:

OK

END

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [10/2014 - 10/2015] or PROBLEM SYMPTOMS TABLE [10/2015 - ] )

1. Check if CH000 is currently selected.

   OK

   CH000 is selected.

Result:

OK

END (CH000 HAS NO SOUND. SELECT ANOTHER CHANNEL.)

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [10/2014 - 10/2015] or PROBLEM SYMPTOMS TABLE [10/2015 - ] )
