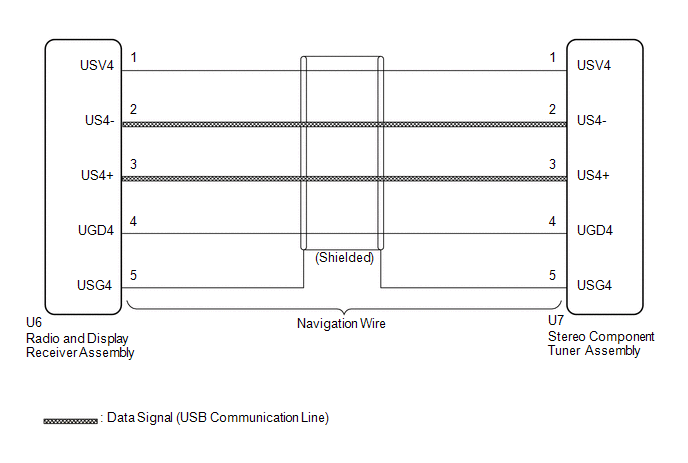

Data Signal Circuit between Radio Receiver and Extension Module [10/2014 - ]: Wiring Diagram

GTY471995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
