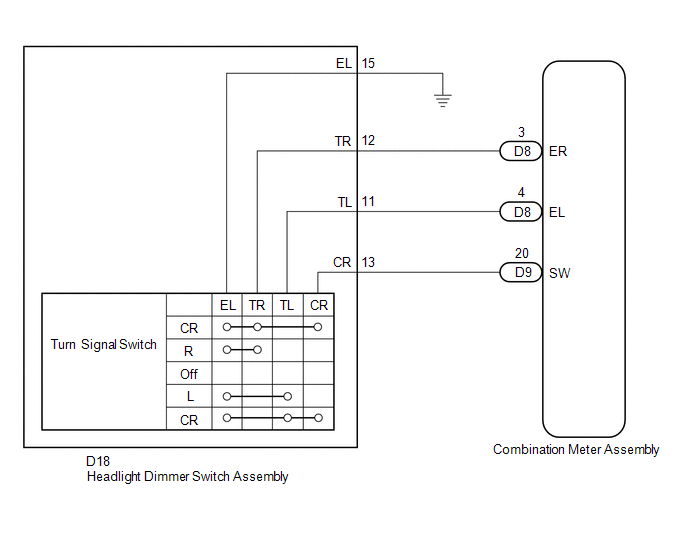

Turn Signal Switch Circuit [10/2014 - ]: Wiring Diagram

GTY573865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
