Daytime Running Light Relay Circuit [10/2014 - 10/2015]: Wiring Diagram

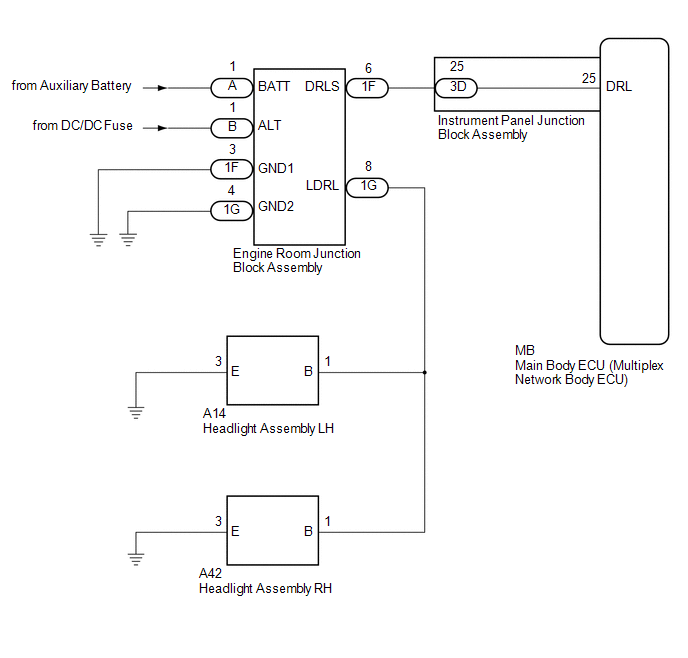

  1. for HID Headlight:
    GTY367987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

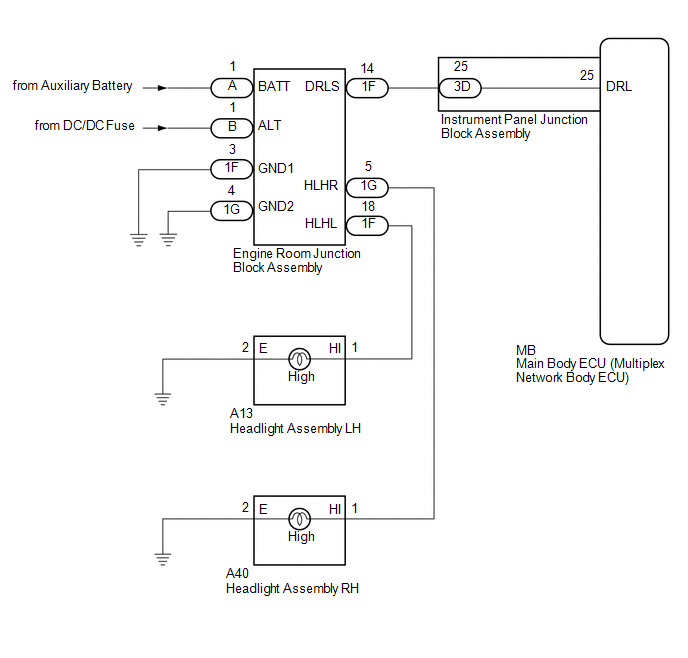

  2. for Halogen Headlight:
    GTY373962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
