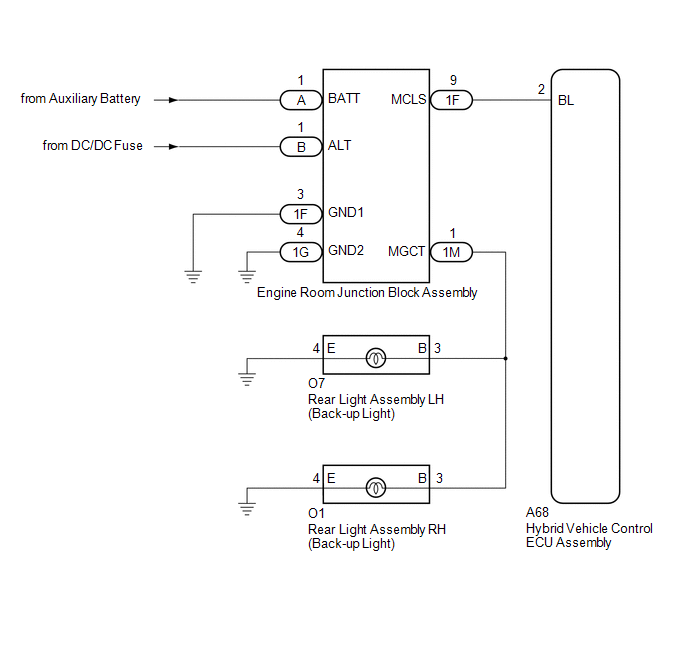

Back-up Light Circuit [10/2015 - ]: Wiring Diagram

GTY600560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
