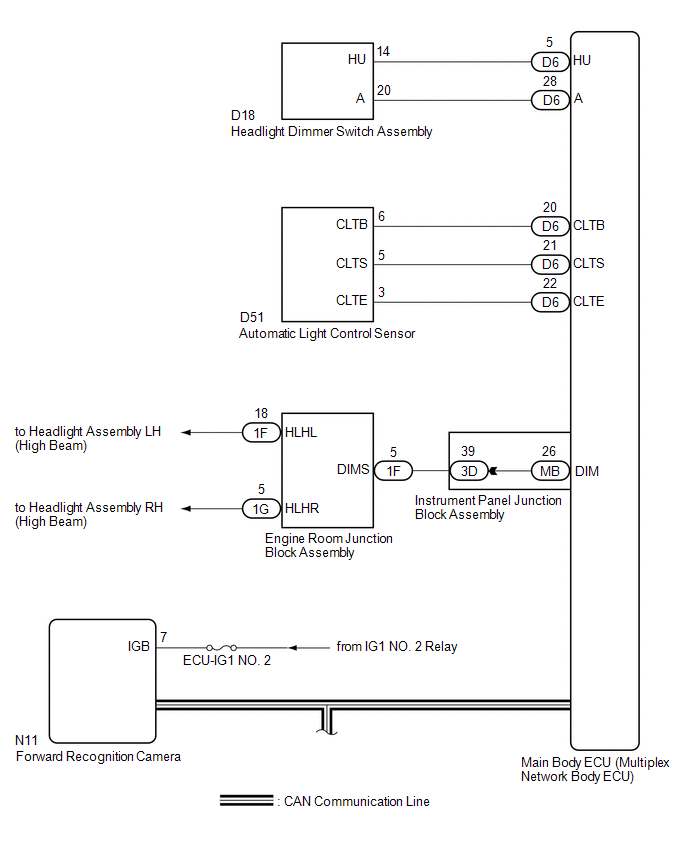

Home >> Toyota >> 2015 >> Avalon Hybrid Limited >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Automatic High Beam System - Diagnostics - Introduction - (Hybrid) >> Automatic High Beam System >> System Diagram [10/2015 - ] >> System Diagram [10/2015 - ]
