Parts Location [10/2014 - 10/2015]: Illustration

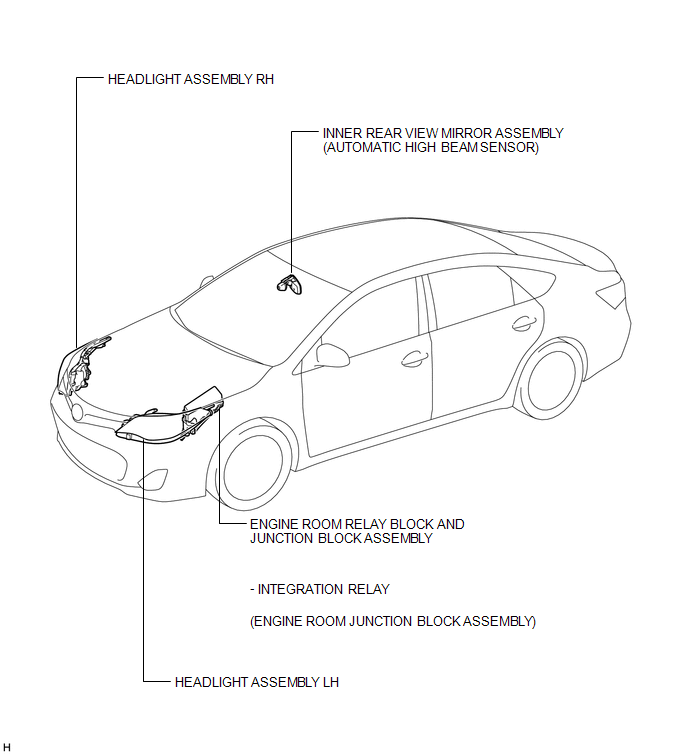

GTY378922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

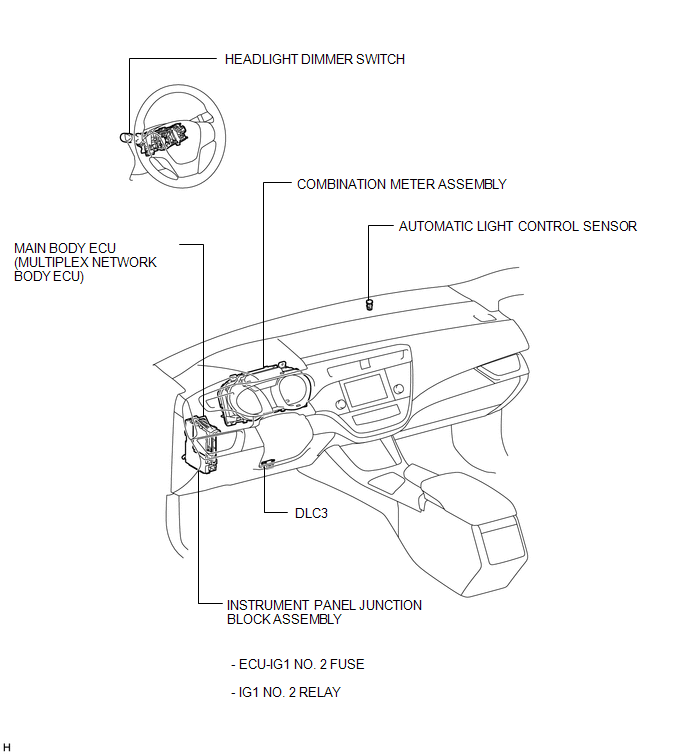

GTY601091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
