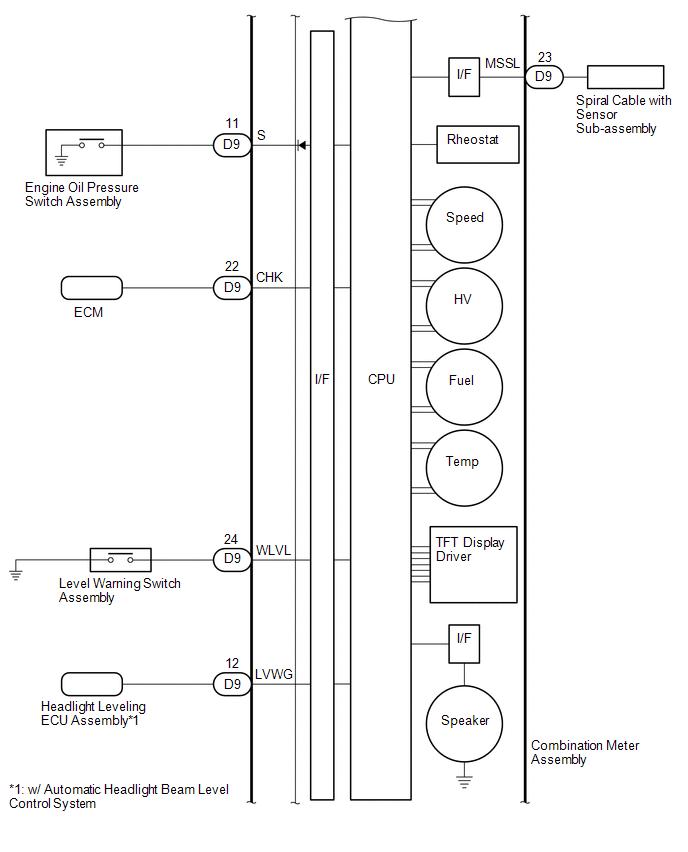

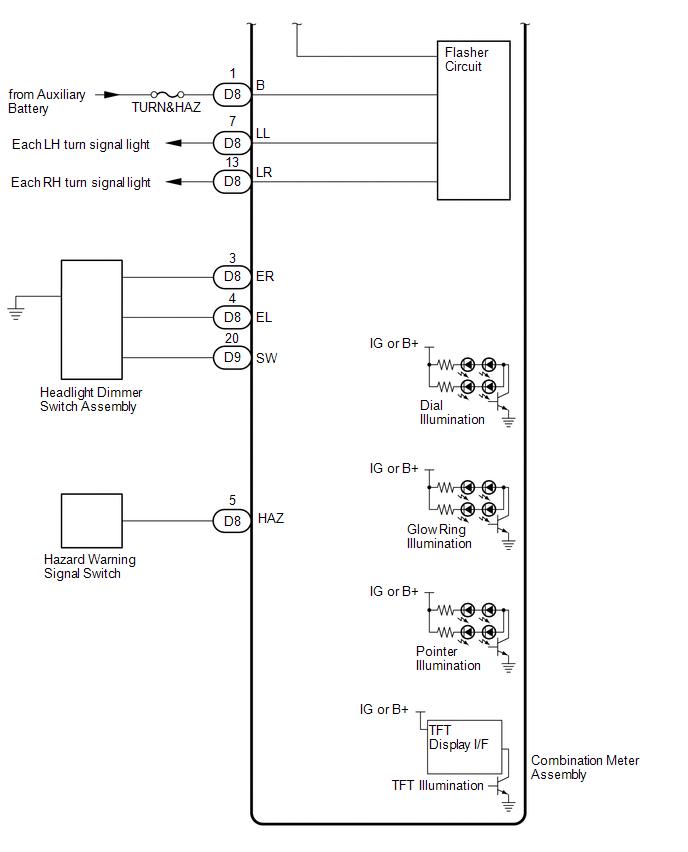

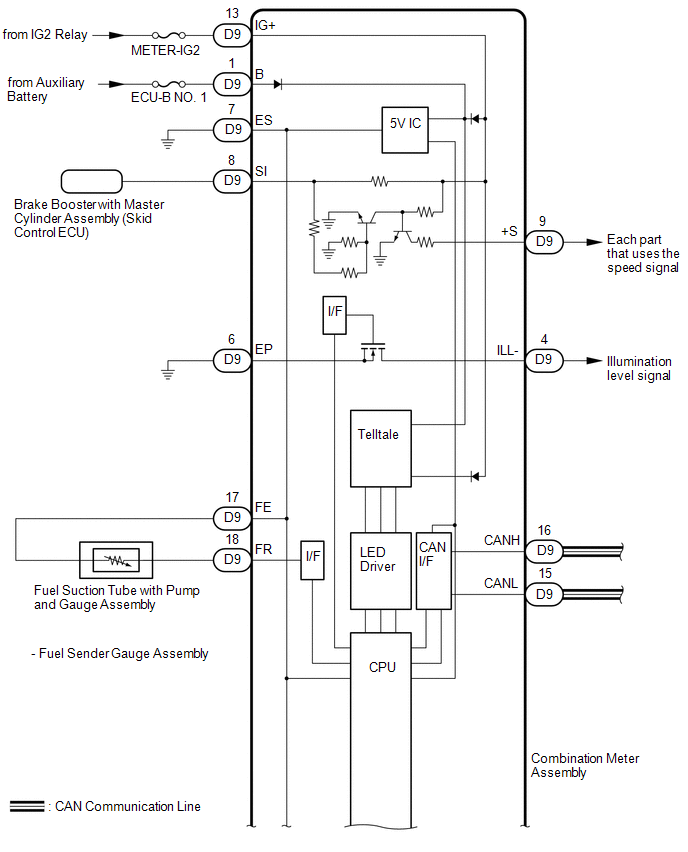

Home >> Toyota >> 2015 >> Avalon Hybrid Limited >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge / Display (Inspection) (Hybrid) >> Meter / Gauge System >> System Diagram [10/2014 - ] >> System Diagram [10/2014 - ]
