Removal [10/2014 - ]: Procedure

  1. REMOVE STOP LIGHT SWITCH ASSEMBLY
    1. Disconnect the connector.
      GTY363147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

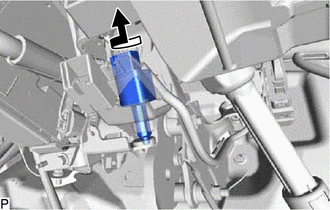

    2. Turn the stop light switch assembly counterclockwise to remove it.
      GTY363148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

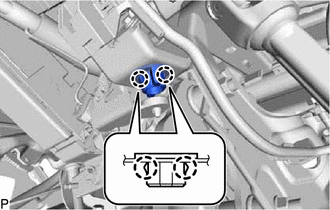

    1. Disengage the 2 claws to remove the stop light switch mounting adjuster.
      GTY363142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
