Removal [10/2014 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR LIGHT ASSEMBLY
    1. Disconnect the connector.

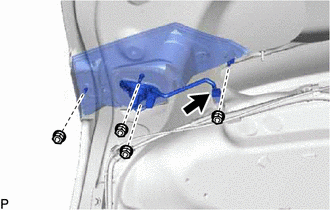

      GTY367185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 nuts and rear light assembly.
    3. Disengage the 2 guides to remove the rear light gasket.

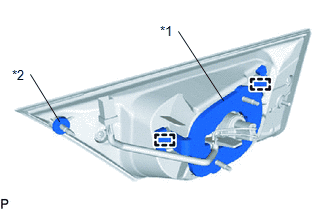

      GTY382891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Rear Light Gasket
      *2 Gasket
    4. Remove the gasket.
