Disassembly [10/2014 - ]: Procedure

  1. REMOVE BACK-UP LIGHT BULB
    1. Disengage the clamp.

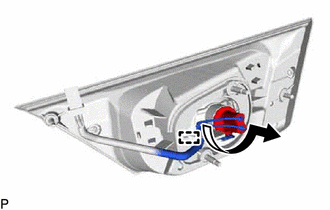

      GTY367186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the back-up light socket with the back-up light bulb as shown in the illustration to disconnect them as a unit.
    3. Remove the back-up light bulb from the back-up light socket.
  2. REMOVE REAR LIGHT SOCKET AND WIRE
    1. Disconnect the connector to remove the rear light socket and wire.
      GTY554702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
