Reassembly [10/2014 - ]: Procedure

  1. INSTALL REAR BUMPER SIDE SUPPORT
    1. Engage the 2 guides to install the rear bumper side support.

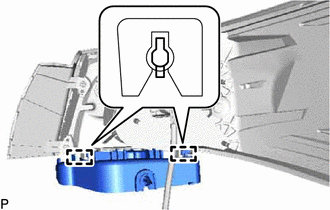

      GTY571746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE
    1. Connect the connector to install the rear combination light socket and wire.

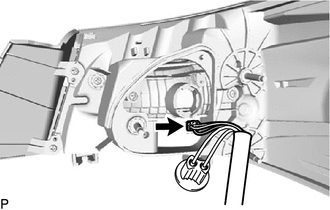

      GTY554697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR TURN SIGNAL LIGHT BULB
    1. Install the rear turn signal light bulb to the rear turn signal light socket.
    2. Turn the rear turn signal light socket with the rear turn signal light bulb as shown in the illustration to connect them as a unit.

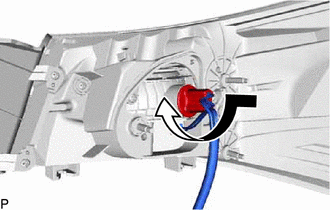

      GTY367151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
