Disassembly [10/2014 - ]: Procedure

  1. REMOVE REAR TURN SIGNAL LIGHT BULB

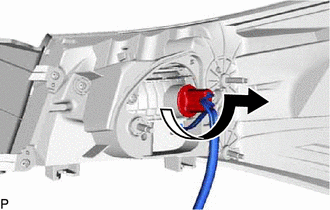

    1. Turn the rear turn signal light socket with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.
      GTY367149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear turn signal light bulb from the rear turn signal light socket.
  2. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE
    1. Disconnect the connector to remove the rear combination light socket and wire.
      GTY554697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR BUMPER SIDE SUPPORT
    1. Using a screwdriver, disengage the 2 guides to remove the rear bumper side support.
      GTY571746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
