Removal [10/2014 - 10/2015]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR SIDE MOULDING

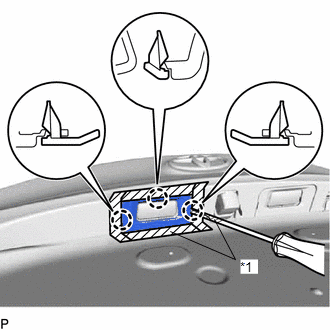

    1. Put protective tape around the luggage compartment door side moulding.
      GTY609584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using a screwdriver wrapped with protective tape, disengage the 3 claws to remove the luggage compartment door side moulding.
  2. REMOVE LICENSE PLATE LIGHT ASSEMBLY

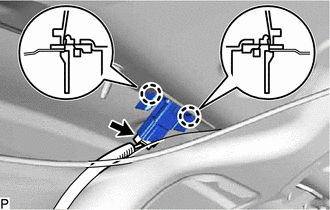

    1. Disconnect the connector.
      GTY367211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the license plate light assembly.
  3. REMOVE LICENSE PLATE LIGHT PACKING

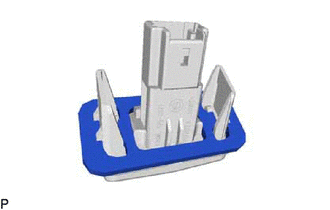

    1. Remove the license plate light packing.
      GTY367210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not reuse the removed packing. Be sure to install a new license plate light packing to prevent water ingress.

  4. REMOVE LICENSE PLATE LIGHT LENS

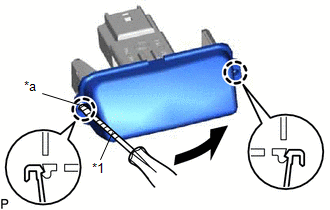

    1. Insert a screwdriver wrapped with protective tape into the license plate light lens hole, tilt it as shown in the illustration and disengage the 2 claws to remove the license plate light lens.
      GTY567367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      *a Insert into the hole
  5. REMOVE LICENSE PLATE LIGHT BULB

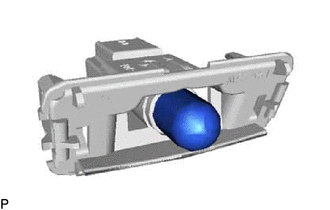

    1. Remove the license plate light bulb.
      GTY382151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
