Removal [10/2014 - ]: Procedure

REMOVE REAR SEAT ASSEMBLY
(Refer to REMOVAL [10/2014 - ] )
REMOVE REAR DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8
REMOVE REAR DOOR SCUFF PLATE RH
HINT:

Use the same procedure as for the LH side.
DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 4
DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
HINT:

Use the same procedure as for the LH side.
REMOVE REAR SEAT SIDE GARNISH LH
Refer to PROCEDURE - Step 24 and PROCEDURE - Step 24
REMOVE REAR SEAT SIDE GARNISH RH
HINT:

Use the same procedure as for the LH side.
DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 8
DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 2
DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 11
REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
Refer to PROCEDURE - Step 25 and PROCEDURE - Step 25
REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
REMOVE REAR SEAT SHOULDER BELT HOLE COVER
Refer to PROCEDURE - Step 14
REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
Refer to PROCEDURE - Step 15

REMOVE CENTER STOP LIGHT SET

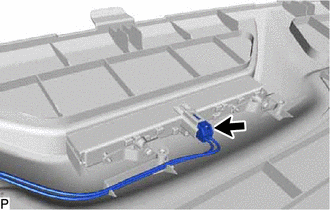

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

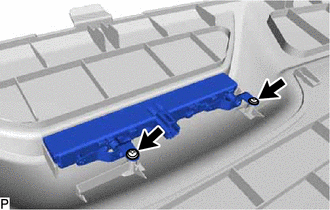

Remove the 2 screws and center stop light set.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CENTER STOP LIGHT BRACKET

Remove the 2 screws.

Disengage the 2 guides to remove the 2 center stop light brackets from the center stop light assembly.
