Inspection [10/2014 - ]: Procedure

  1. INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY
    1. Connect 3 dry cell batteries (1.5 V) in series.
      NOTE:

      Do not use rechargeable batteries as they may not output a voltage of 1.5 V.

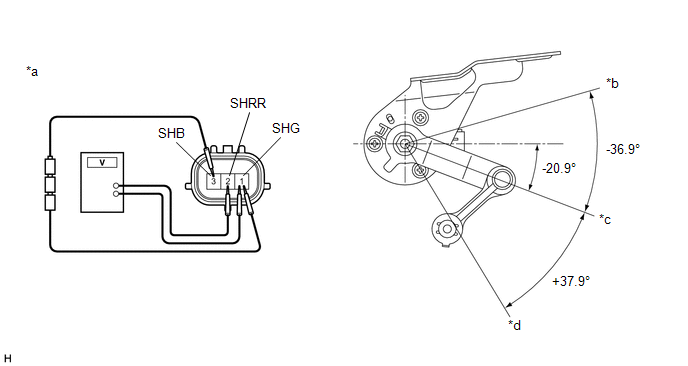

      GTY377765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Rear Height Control Sensor Sub-assembly)      		 *b Low
      *c Standard position *d High
    2. Connect a positive (+) lead from the batteries to terminal 3 (SHB) and a negative (-) lead to terminal 1 (SHG).
    3. Measure the voltage between terminals 2 (SHRR) and 1 (SHG) while slowly moving the link up and down.

      Standard Voltage

      Tester Connection Condition Specified Condition
      2 (SHRR) - 1 (SHG) +37.9° (High) 3.77 V
      2 (SHRR) - 1 (SHG) 0° (Normal) 2.25 V
      2 (SHRR) - 1 (SHG) -36.9° (Low) 0.77 V

      If the result is not as specified, replace the rear height control sensor sub-assembly.
