Removal [10/2014 - ]: Procedure

  1. REMOVE HEADLIGHT LEVELING ECU ASSEMBLY
    1. Disconnect the connector.

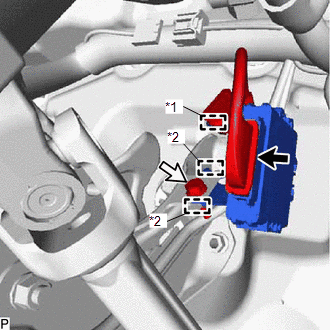

      GTY595529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Clamp
      *2 Guide
    2. Disengage the clamp.
    3. Remove the bolt.
    4. Disengage the 2 guides to remove the headlight leveling ECU assembly.
